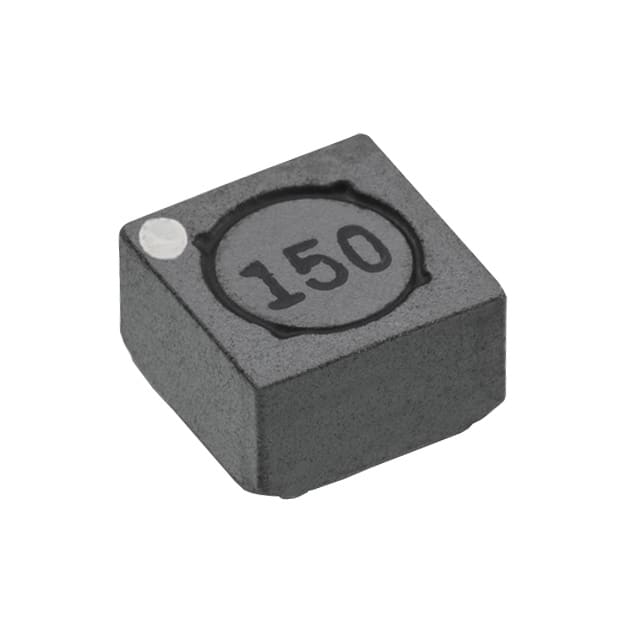

The 7448841010 from Würth Elektronik is a WE-DPC HV series shielded dual power choke designed for surface mount applications. It features two 1 µH coils with ±30% tolerance, measured at 100 kHz and 100 mV. Each coil has a typical DC resistance of 32 mΩ and a maximum of 45 mΩ, with a rated current of 2.9 A at a 40 K temperature rise. The saturation current is 5 A typical.
This component offers a self-resonant frequency of 190 MHz, a 1:1 turns ratio, leakage inductance of 0.07 µH, and a coupling coefficient of 0.96. The insulation test voltage is 1500 V AC maximum, and the rated voltage is 250 V RMS for functional isolation only.
The part is shielded and comes in a nonstandard SMD package measuring 5.20mm x 5.20mm x 3.10mm. It operates over -40°C to +125°C and is RoHS, REACH, and halogen-free compliant with MSL Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.13 | $2.13 |
| 10+ | $1.88 | $1.88 |
| 25+ | $1.76 | $1.76 |
| 50+ | $1.63 | $1.63 |
| 100+ | $1.54 | $1.54 |
| 250+ | $1.45 | $1.45 |
| 500+ | $1.34 | $1.34 |
| 2,000+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 µH per coil measured at 100 kHz and 100 mV.
2.9 A maximum per coil at a 40 K temperature rise.
32 mΩ typical and 45 mΩ maximum per coil at 20 °C.
Yes, RoHS3 compliant as verified by the datasheet.
-40°C to +125°C.
Surface mount, nonstandard package measuring 5.20mm x 5.20mm x 3.10mm.
