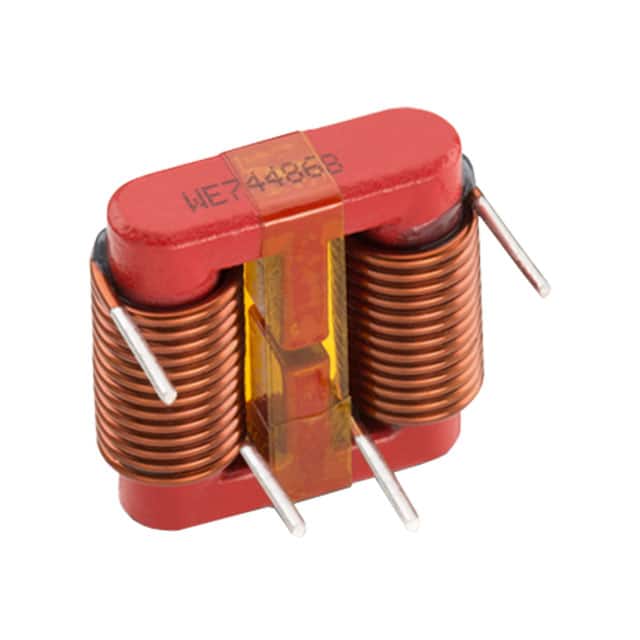

The Würth Elektronik 7448680180 is a common mode power line choke from the WE-LPCC series. It features a nominal inductance of 150 µH at 10 kHz (100 mV) with a ±40% tolerance. The leakage inductance is typically 5.6 µH. The component is rated for a maximum DC current of 20 A at 60 °C and a maximum DC resistance of 1.9 mΩ at 20 °C. It can handle a rated AC voltage of 250 V at 50 Hz and an insulation test voltage of 1500 V AC.
The choke is constructed with 2 lines and comes in a horizontal, 4-pin PC pin termination style for through-hole mounting. The package dimensions are 27.5 mm x 25.0 mm x 14.5 mm (max). It operates over a temperature range of -40°C to +115°C. The component is RoHS, REACH, and halogen-free compliant, with an MSL level of 1. This choke is suitable for common mode filtering in power supply and EMI suppression applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.62 | $7.62 |
| 60+ | $6.86 | $6.86 |
| 120+ | $6.10 | $6.10 |
| 270+ | $5.59 | $5.59 |
| 510+ | $5.08 | $5.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 150 µH at 10 kHz with ±40% tolerance.
The rated current is 20 A maximum at 60 °C.
The operating temperature is -40°C to +115°C.
Yes, it is RoHS compliant according to directive 2011/65/EU and 2015/863.
The package is Horizontal, 4 PC Pad, with PC pin termination (through hole).
The maximum DC resistance is 1.9 mΩ at 20 °C.
The rated voltage is 250 V AC at 50 Hz.
