| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

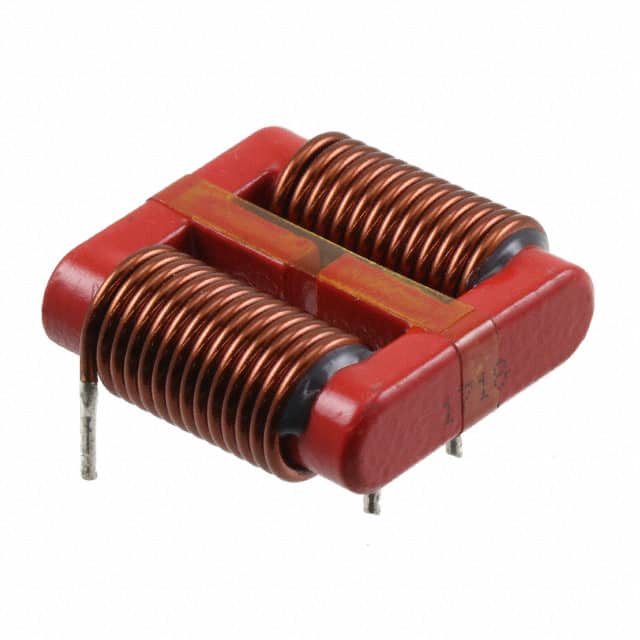

The 7448680100 is a WE-LPCC common mode power line choke from Würth Elektronik. It features a nominal inductance of 450µH at 10 kHz and a maximum rated current of 9.5A at 60°C. The DC resistance is 9.6mΩ maximum at 20°C, and the rated voltage is 250V AC.
This choke is designed for power line filtering applications to suppress common mode noise. It has two windings and a leakage inductance of 17.6µH typical. The insulation test voltage is 1500V AC.
The component is housed in a horizontal, 4 PC pad package with through hole mounting. Dimensions are 27.5mm length, 25.0mm width, and 9.7mm maximum height. Operating temperature range is -40°C to +115°C.
The choke is RoHS3 compliant, REACH conform, halogen free, and has MSL 1 rating. It is suitable for use in general electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.62 | $7.62 |
| 60+ | $6.86 | $6.86 |
| 120+ | $6.10 | $6.10 |
| 270+ | $5.59 | $5.59 |
| 510+ | $5.08 | $5.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
450 µH at 10 kHz, 100 mV.
9.5 A maximum at 60°C.
9.6 mΩ maximum at 20°C.
-40°C to +115°C.
250 V AC maximum at 50 Hz.
Horizontal, 4 PC Pad, through hole.
Yes, RoHS3 compliant per 2011/65/EU & 2015/863.
