| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
732 pcs
|
732 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

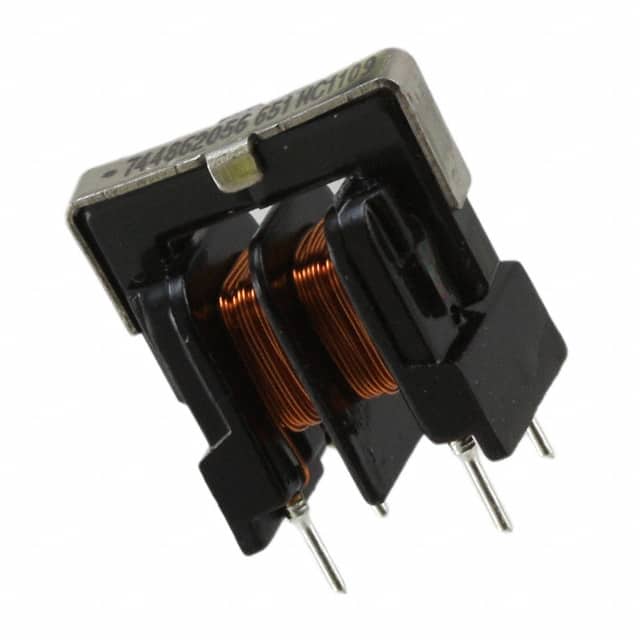

The 744862056 is a common mode power line choke from Würth Elektronik's WE-TFC series. It offers 5.6 mH inductance measured at 10 kHz and 100 mV, with a typical leakage inductance of 60 µH. The rated current is 0.6 A at 70°C ambient with a maximum temperature rise of 55 K. DC resistance is 0.83 Ω maximum. The component is rated for 300 V AC at 50 Hz and has an insulation test voltage of 2500 V AC.
This choke is designed for through hole mounting in a vertical package with 4 PC pins. It operates over a temperature range of -40°C to 125°C. The component is AEC-Q200 Grade 1 qualified and compliant with RoHS, REACH, and Halogen Free standards. It is suitable for power line EMI filtering in automotive and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.10 | $4.10 |
| 10+ | $3.84 | $3.84 |
| 50+ | $3.34 | $3.34 |
| 88+ | $3.00 | $3.00 |
| 528+ | $2.67 | $2.67 |
| 1,056+ | $2.44 | $2.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 V AC at 50 Hz.
Through hole, vertical, 4 PC pin.
-40°C to 125°C.
Yes, compliant with 2011/65/EU and 2015/863.
5.6 mH at 10 kHz, 100 mV.
0.6 A at 70°C ambient.
Yes, Grade 1.
