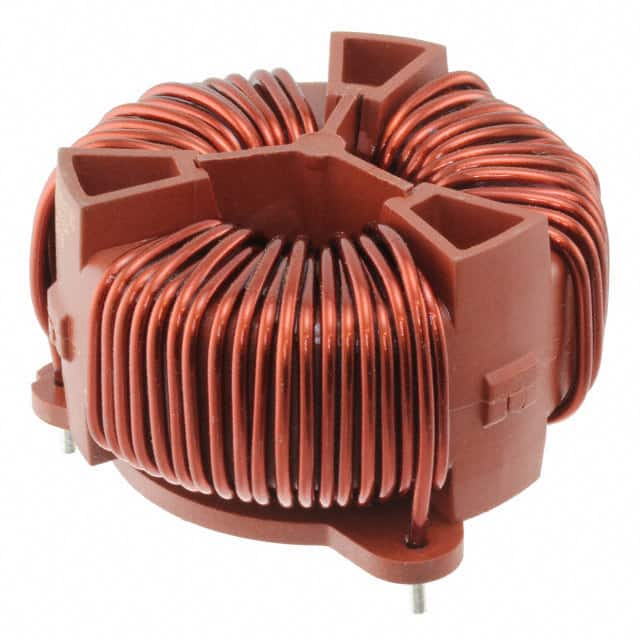

744837002460 Three-phase common mode power line choke with 200µH inductance, 46A current rating, and 760V AC voltage rating. Through-hole mounting with 6 PC pin horizontal package.
Mfr Part #:

744837002460

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Three-phase common mode power line choke with 200µH inductance, 46A current rating, and 760V AC voltage rating. Through-hole mounting with 6 PC pin horizontal package.
✓ Total Stock: 4 pcs
$ Price Range: $46.30 - $54.50

744837002460 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 2044 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744837002460 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

744837002460 Description

Short technical summary and product information.

The Würth Elektronik 744837002460 is a three-phase common mode power line choke designed for high-current EMI filtering applications. It features a nominal inductance of 200 µH (measured at 10 kHz, 0.1 mA, ±50% tolerance) and can handle a continuous rated current of 46 A at 70°C ambient temperature. The DC resistance is a low 1.6 mΩ maximum, minimizing power losses. The component is rated for a maximum AC voltage of 760 V at 50 Hz and passes an insulation test voltage of 3000 V AC.



The choke is housed in a horizontal, 6-pin through-hole package with a diameter of 70.0 mm and a maximum height of 39.0 mm. The operating temperature range spans -40°C to +125°C, with a temperature rise limited to 55 K at rated current. Storage conditions recommend temperatures below 40°C and humidity below 75% RH.



This component is suitable for use in industrial power supplies, motor drives, and other three-phase power line filtering applications where common mode noise suppression is required. It is RoHS3 compliant, REACH conform, and halogen-free per JEDEC and IEC standards.

744837002460 Quick Information

Product Type: Common Mode Choke
Series: WE-TPB HV
Canonical Name: Three-Phase Common Mode Power Line Choke, 200 µH, 46 A, Through Hole
Subcategory: Power Line Chokes

744837002460 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

744837002460 Estimated Pricing

Qty Low High
1+ $54.50 $54.50
12+ $48.44 $48.44
54+ $46.30 $46.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

744837002460 Features

  • Three-phase common mode power line choke.
  • Rated for 46A continuous current at 70°C.
  • High inductance of 200µH with ±50% tolerance.
  • Operating temperature range -40°C to +125°C.
  • Through-hole mounting with horizontal 6-pin package.

744837002460 Applications

  • Used in three-phase power line EMI filtering.
  • Suitable for industrial power supply applications.
  • Ideal for reducing common mode noise in high-current circuits.
  • Applicable in motor drives and inverters.

744837002460 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of this common mode choke?

760 V AC at 50 Hz.

What is the package style of this choke?

Horizontal, 6 PC Pin through-hole package.

What is the operating temperature range?

-40°C to +125°C.

Is this component RoHS compliant?

Yes, RoHS3 compliant per 2011/65/EU&2015/863.

What is the inductance value?

200 µH at 10 kHz, 0.1 mA, with ±50% tolerance.

What is the DC resistance?

1.6 mΩ maximum.

What is the current rating?

46 A maximum at 70°C ambient temperature.
