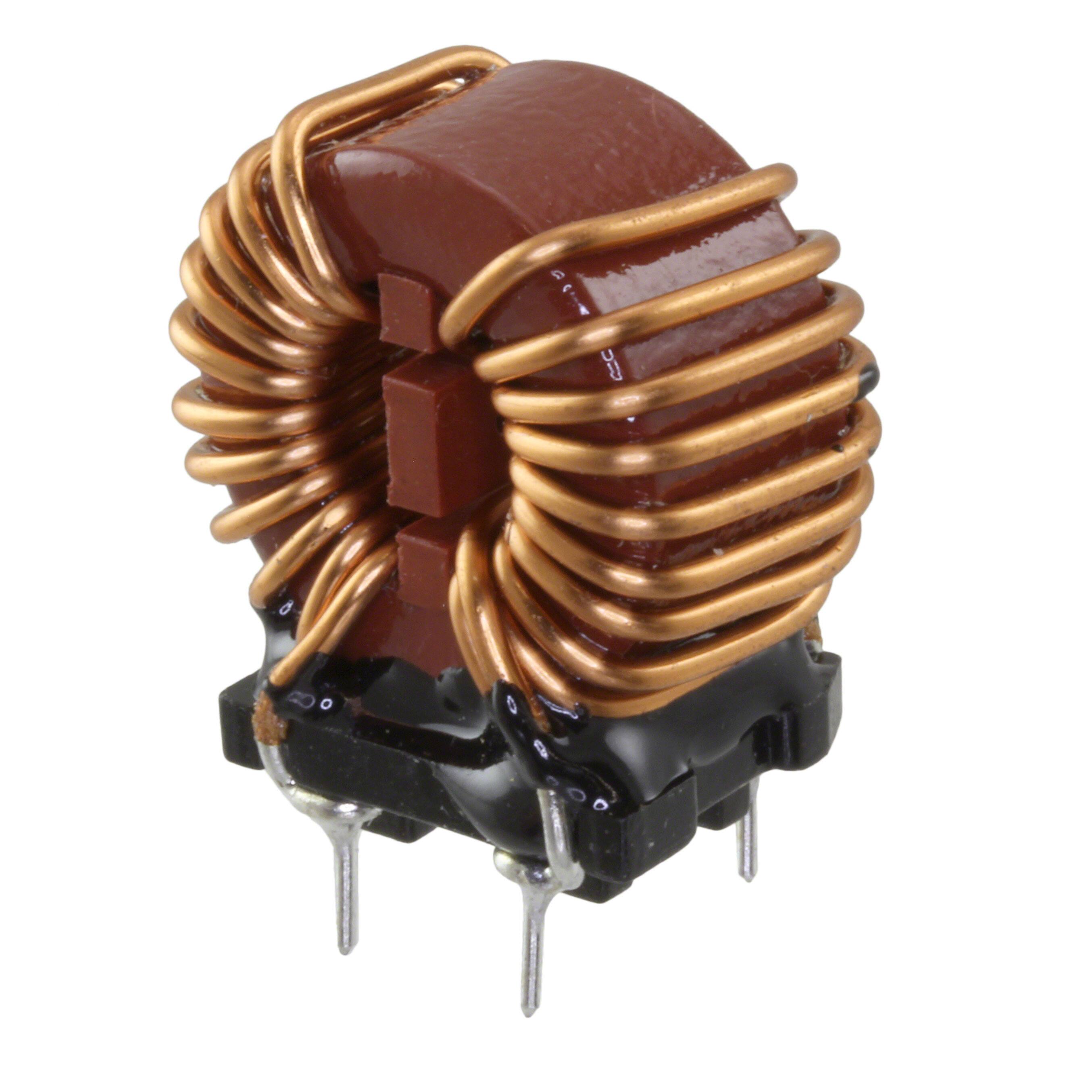

This is a common mode choke from Würth Elektronik's WE-CMB series, designed for power line filtering. It features an inductance of 1 mH at 10 kHz and 0.1 mA, with a tolerance of ±30%. The rated current is 6 A at 70 °C ambient temperature.
The DC resistance is 13 mΩ maximum at 20 °C. The rated voltage is 250 V AC at 50 Hz, with an insulation test voltage of 1500 V AC. The operating temperature range is -40 °C to +125 °C, with a maximum temperature rise of 55 K.
The component has two windings and two lines, making it a 2-line common mode choke. It is mounted through hole with a vertical, 4 PC pin package. The lead spacing is 7.5 mm. Dimensions are 25.00 mm length, 17.00 mm width, and 26.50 mm height.
This choke is suitable for suppressing common mode noise in power supply circuits. It is RoHS and REACH compliant, with MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.02 | $5.02 |
| 10+ | $4.93 | $4.93 |
| 50+ | $3.91 | $3.91 |
| 100+ | $3.74 | $3.74 |
| 500+ | $3.40 | $3.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250 V AC at 50 Hz.
Vertical, 4 PC Pin through hole.
-40 °C to +125 °C.
Yes, RoHS3 compliant.
1 mH at 10 kHz, 0.1 mA.
6 A at 70 °C.
Through hole.
