| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

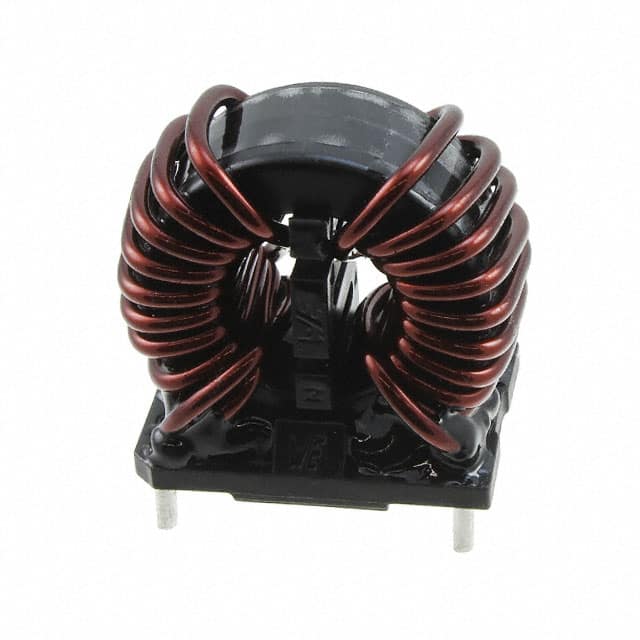

The Würth Elektronik 7448052502 is a common mode power line choke from the WE-CMBNC series. It is designed for suppressing common mode noise in power line applications. The component has two lines with a nominal inductance of 2.5 mH at 10 kHz and +50%/-30% tolerance.
It is rated for a maximum current of 25 A at 70 °C and has a maximum DC resistance of 2.2 mΩ at 20 °C. The maximum rated voltage is 300 V AC at 50 Hz, and the insulation test voltage is 2100 V AC. AEC-Q200 Grade 1 qualification supports use in automotive environments.
The choke operates over a temperature range of -55 °C to +125 °C and features a temperature rise of less than 55 K. It is supplied in a vertical, 4-pin through-hole package with dimensions of 36.00 mm x 23.00 mm x 36.00 mm (L x W x H). RoHS compliant and REACH conform.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.65 | $16.65 |
| 48+ | $15.52 | $15.52 |
| 264+ | $14.09 | $14.09 |
| 504+ | $12.18 | $12.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated voltage is 300 V AC at 50 Hz.
Vertical 4 PC pin through-hole package.
-55 °C to +125 °C.
Yes, RoHS compliant under EU Directive 2011/65/EU and 2015/863.
2.5 mH at 10 kHz with +50%/-30% tolerance.
25 A at 70 °C.
Maximum 2.2 mΩ at 20 °C.
