| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

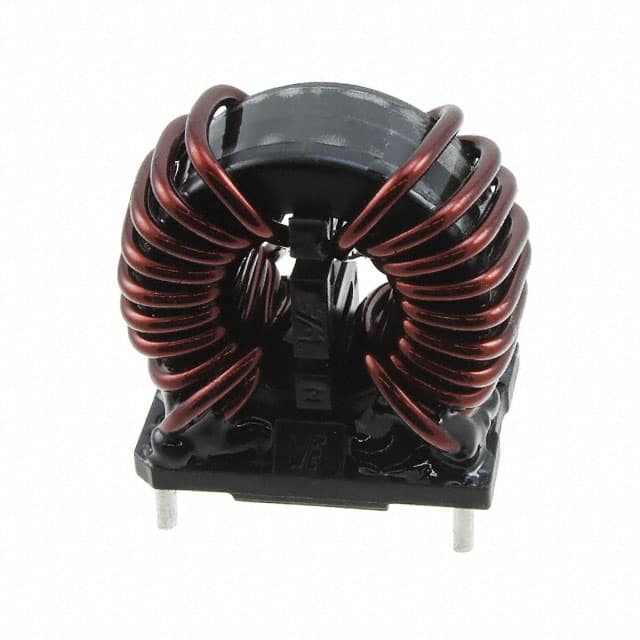

The 7448052303 is a common mode power line choke from Würth Elektronik's WE-CMBNC series, featuring a nanocrystalline core for high performance EMI suppression. It offers an inductance of 3 mH at 10 kHz with a tolerance of +50%/-30%, and is rated for a continuous current of 23 A at 70°C. The maximum DC resistance is 3 mOhm, and the rated voltage is 300 V AC at 50 Hz. Insulation test voltage is 2100 V AC.
This component is designed for through hole mounting in a vertical, 4 PC pin package. It has an operating temperature range of -55°C to +125°C, with a maximum temperature rise of 55 K. The climatic category is 55/125/21, and storage conditions are below 40°C and 75% RH. It is AEC-Q200 Grade 1 qualified, making it suitable for automotive applications.
Typical applications include power line EMI filtering in switch-mode power supplies, automotive electronics, and industrial equipment. The choke provides effective common mode noise attenuation while handling high currents. The compact package dimensions are 36.00 mm length, 23.00 mm width, and 33.0 mm height.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.91 | $16.91 |
| 10+ | $16.78 | $16.78 |
| 24+ | $16.65 | $16.65 |
| 120+ | $15.52 | $15.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 300 V AC at 50 Hz.
Through hole mounting with a vertical, 4 PC pin package.
-55°C to +125°C.
Yes, compliant with 2011/65/EU and 2015/863.
3 mH at 10 kHz, 0.1 mA, with tolerance +50%/-30%.
23 A at 70°C.
Yes, it is AEC-Q200 Grade 1 qualified.
