| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
460 pcs
|
460 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

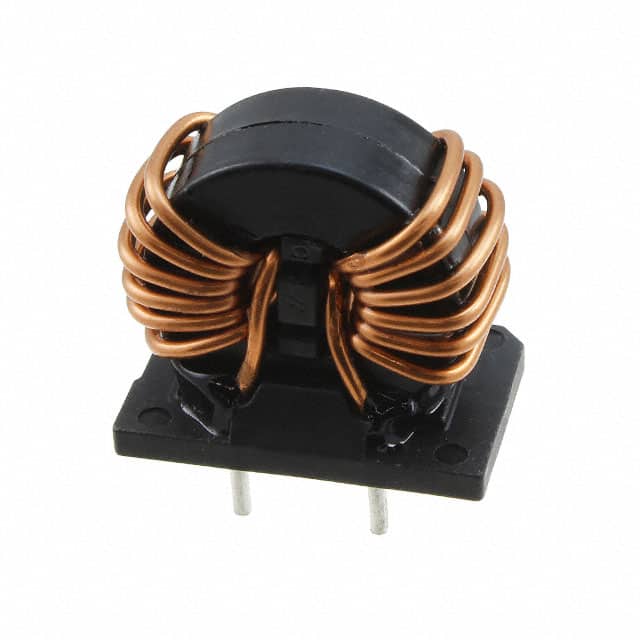

The 7448042001 is a common mode power line choke from Würth Elektronik's WE-CMBNC series, designed for EMI suppression in high-current applications. It features a nanocrystalline core and is rated for 20 A continuous current at 70°C. The inductance is 1 mH at 10 kHz with a tolerance of +50%/-30%. Maximum DC resistance is 2.4 mΩ at 20°C. The rated voltage is 300 V AC at 50 Hz, and insulation test voltage is 2100 V AC. The component operates over a temperature range of -55°C to 125°C and has a maximum temperature rise of 55 K. It is AEC-Q200 Grade 1 qualified, making it suitable for automotive use. The package is a vertical, 4 PC pin through-hole with dimensions 30.0 mm x 19.0 mm x 28.0 mm. It is RoHS and REACH compliant, with MSL Level 1. Storage conditions recommend temperature below 40°C and humidity below 75% RH.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.07 | $14.07 |
| 50+ | $12.18 | $12.18 |
| 250+ | $10.51 | $10.51 |
| 500+ | $9.67 | $9.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 V AC (max) at 50 Hz.
Vertical, 4 PC Pin through-hole package.
-55°C to 125°C.
Yes, it is RoHS compliant as per 2011/65/EU & 2015/863.
20 A at 70°C.
+50%/-30% at 10 kHz, 0.1 mA.
Yes, Grade 1.
