| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
156 pcs
|
156 pcs | On Request | 1 | On Request | On Request | 1719 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

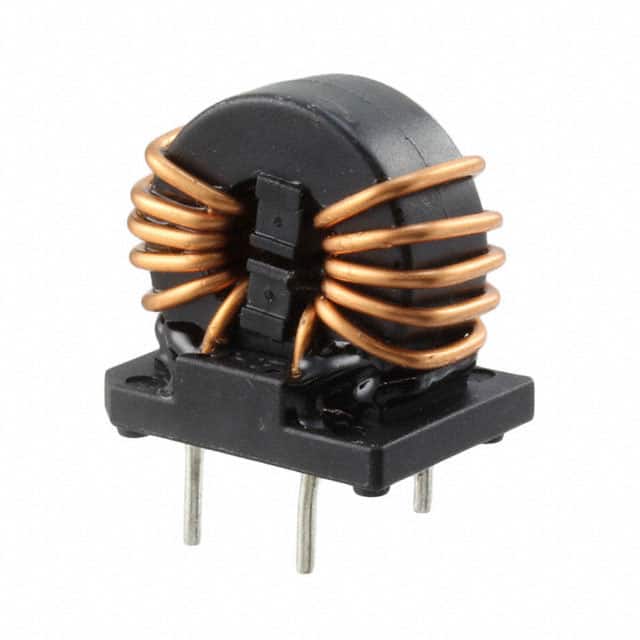

The 7448031002 is a common mode power line choke from Würth Elektronik, part of the WE-CMBNC series. It features a 2 mH inductance (measured at 10 kHz, 0.1 mA) with ±50% tolerance, and a rated current of 10 A at 70°C. The maximum DC resistance is 6.3 mΩ, and the component is rated for 300 V AC (50 Hz) with an insulation test voltage of 2100 V AC. The choke has two windings and is designed for through-hole mounting in a vertical 4 PC Pin package. Operating temperature range is -55°C to +125°C. It is certified to ENEC 10, VDE, and AEC-Q200 Grade 1, and is RoHS and REACH compliant. The climatic category is 55/125/21.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.62 | $13.62 |
| 10+ | $13.34 | $13.34 |
| 25+ | $13.14 | $13.14 |
| 50+ | $12.06 | $12.06 |
| 90+ | $11.34 | $11.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 mH ±50%, measured at 10 kHz, 0.1 mA.
10 A maximum at 70°C.
-55°C to +125°C.
Yes, compliant with 2011/65/EU and 2015/863.
ENEC 10, VDE, AEC-Q200 Grade 1.
