| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

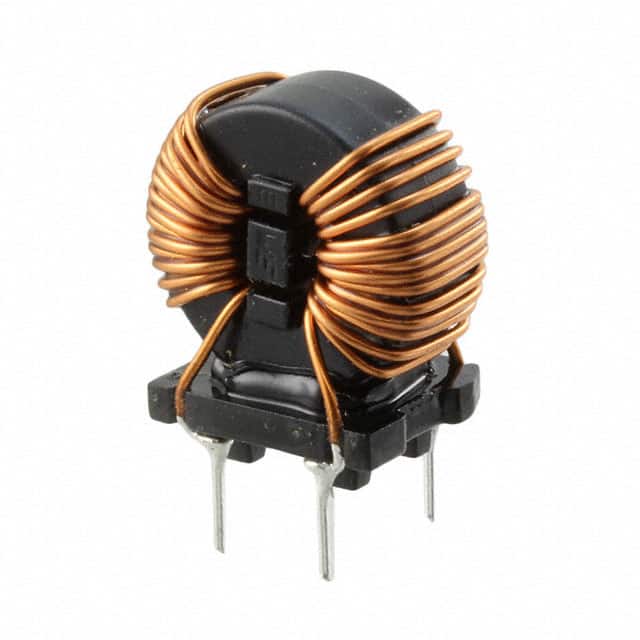

The 7448030509 is a common mode power line choke from Würth Elektronik's WE-CMBNC series. Designed for through-hole mounting, it features a vertical 4-pin package suitable for power line filtering applications.
The component offers an inductance of 9mH at 10kHz with a tolerance of ±50% and a rated current of 5A at 70°C. With a maximum DC resistance of 32mΩ and a rated voltage of 300V AC at 50Hz, it is well-suited for AC power line noise suppression. The insulation test voltage is 2100V AC.
It operates over a temperature range of -55°C to +125°C and is AEC-Q200 Grade 1 qualified, making it suitable for automotive applications. The choke consists of two windings and two lines, providing common mode filtering. It is RoHS and REACH compliant, with an MSL of 1 and a climatic category of 55/125/21.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.90 | $12.90 |
| 50+ | $11.34 | $11.34 |
| 270+ | $9.67 | $9.67 |
| 540+ | $8.82 | $8.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9mH at 10kHz, ±50% tolerance.
5A at 70°C.
-55°C to +125°C.
Through hole, vertical 4 PC pin.
Yes, Grade 1.
32mΩ maximum at 20°C.
300V AC at 50Hz.
