| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

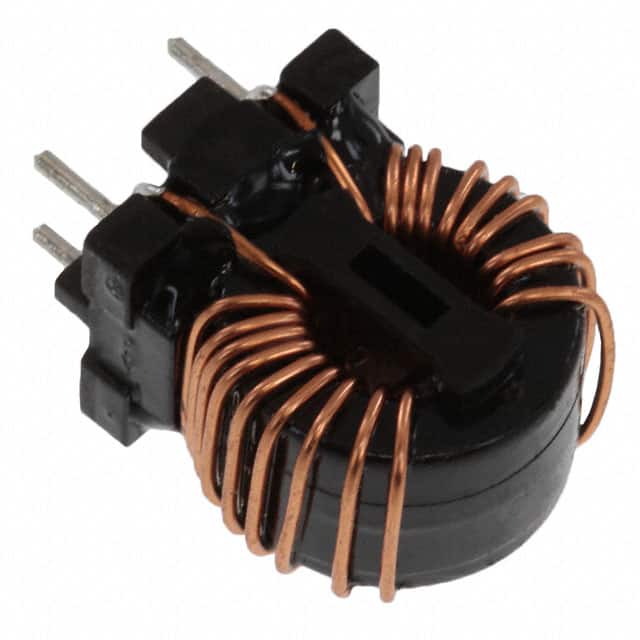

The Würth Elektronik 7448024503 is a common mode power line choke designed for EMI suppression in power supply circuits. It features a nanocrystalline core and offers 3 mH inductance per winding at 10 kHz. The component is rated for 4.5A continuous current at 70°C with a maximum DC resistance of 22 mOhm. It can handle up to 300VAC rated voltage and passes 2100VAC insulation testing.
The choke is housed in a vertical through-hole package with 4 PC pins, measuring 18mm x 14mm x 22mm. It operates over a wide temperature range from -55°C to 125°C and has a maximum temperature rise of 55K. The component is AEC-Q200 Grade 1 qualified, making it suitable for automotive applications. It is RoHS compliant and REACH conform.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.72 | $9.72 |
| 5+ | $9.19 | $9.19 |
| 10+ | $7.19 | $7.19 |
| 25+ | $6.38 | $6.38 |
| 40+ | $5.74 | $5.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 300VAC at 50 Hz.
Through hole, vertical, 4 PC pin package.
-55°C to 125°C.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863.
3 mH at 10 kHz, 0.1 mA, with tolerance +50%/-30%.
4.5A maximum at 70°C.
Yes, it is AEC-Q200 Grade 1 qualified.
