| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

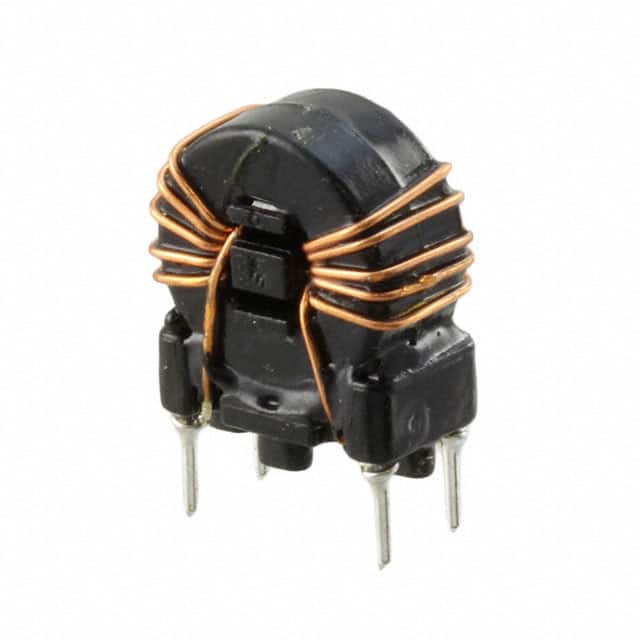

The 7448014501 is a common mode power line choke from Würth Elektronik's WE-CMBNC series, designed for through hole mounting in a vertical 4-pin package. It offers a nominal inductance of 0.4 mH (measured at 10 kHz, 0.1 mA) with a tolerance of +50%/-30%. The component is rated for a continuous current of 4.5 A at 70 °C and has a maximum DC resistance of 22 mΩ at 20 °C. The rated voltage is 300 V AC at 50 Hz, with an insulation test voltage of 2100 V AC.
This choke is qualified to AEC-Q200 Grade 1, making it suitable for automotive applications. It complies with RoHS and REACH requirements and has an MSL of 1 (unlimited floor life). The operating temperature range is -55 °C to +125 °C, with a maximum temperature rise of 55 K. The climatic category is 55/125/21. The part measures 15.0 mm in length, 7.5 mm in width, and 16.0 mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.20 | $10.20 |
| 50+ | $8.95 | $8.95 |
| 300+ | $8.12 | $8.12 |
| 600+ | $6.21 | $6.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 0.4 mH at 10 kHz, 0.1 mA, with a tolerance of +50%/-30%.
The rated current is 4.5 A maximum at 70 °C.
The operating temperature range is -55 °C to +125 °C.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863.
It uses a vertical, 4 PC Pin through hole package.
