| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

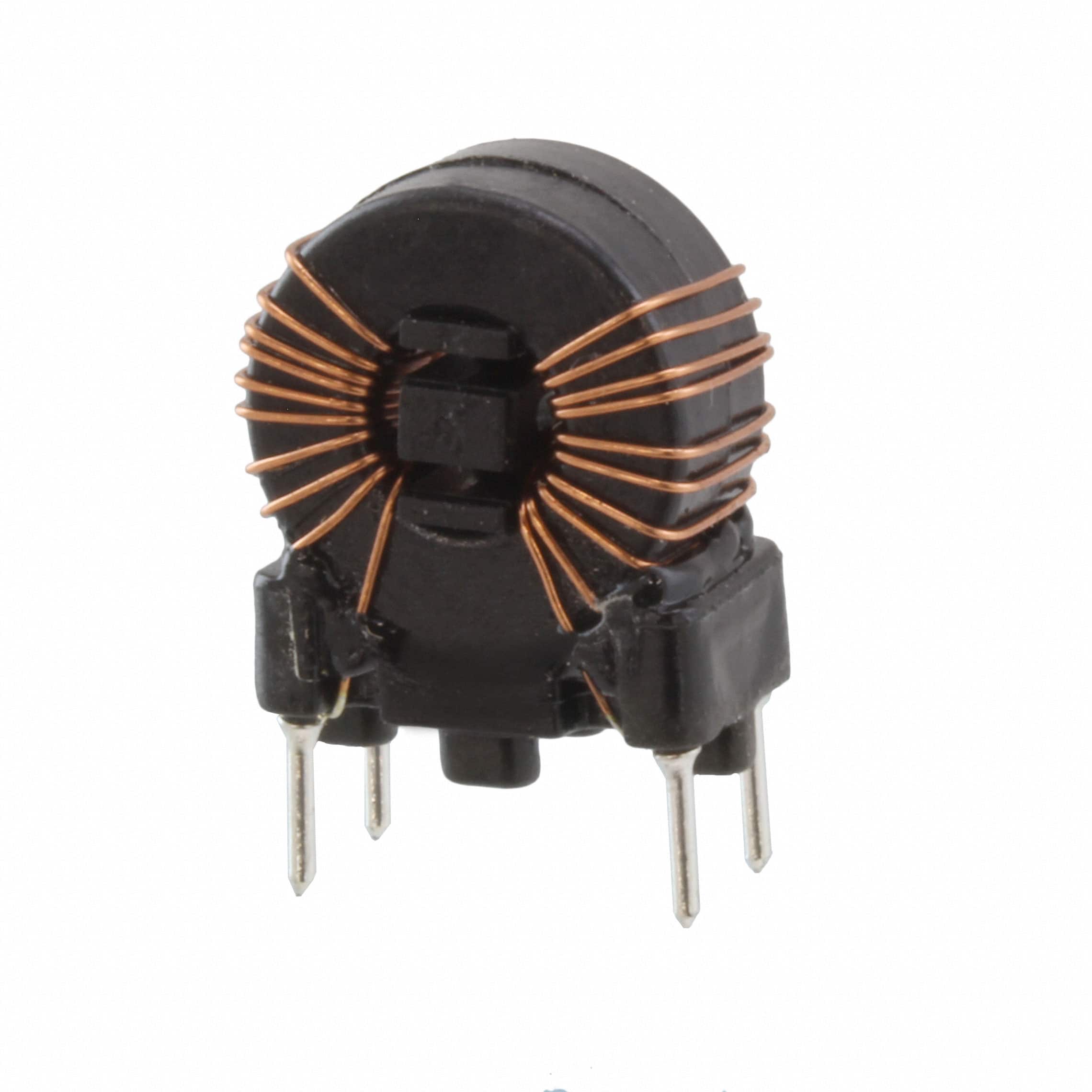

This is a 2-line common mode choke designed for power line filtering. It has an inductance of 1.6 mH measured at 10 kHz/0.1 mA with tolerance +50%/-30%. The rated current is 2 A at 70°C, with a maximum DC resistance of 90 mΩ. The rated voltage is 300 V AC at 50 Hz, and insulation test voltage is 2100 V AC. It operates over -55°C to +125°C and has a temperature rise less than 55 K. The component is through hole mounted with a vertical, 4 PC pin package. It is RoHS3 compliant, REACH unaffected, and AEC-Q200 Grade 1 qualified. Suitable for applications requiring high reliability and common mode noise suppression.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.69 | $9.69 |
| 50+ | $8.51 | $8.51 |
| 100+ | $7.72 | $7.72 |
| 300+ | $5.89 | $5.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.6 mH measured at 10 kHz/0.1 mA.
2 A at 70°C.
-55°C to +125°C.
300 V AC at 50 Hz.
Through hole, vertical, 4 PC pin.
Yes, RoHS3 compliant.
Yes, AEC-Q200 Grade 1.
