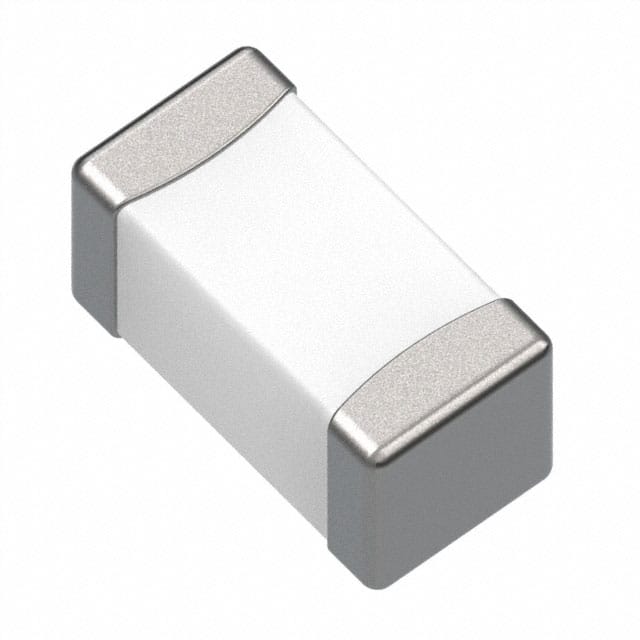

744786133A Würth Elektronik WE-MK multilayer ceramic inductor, 33nH ±5%, 400mA rated current, 0.7Ω maximum DC resistance, 0603 SMD package, AEC-Q200 qualified.
Mfr Part #:

744786133A

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WE-MK multilayer ceramic inductor, 33nH ±5%, 400mA rated current, 0.7Ω maximum DC resistance, 0603 SMD package, AEC-Q200 qualified.
✓ Total Stock: 30 pcs
$ Price Range: $0.11 - $0.22

744786133A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744786133A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
AEC-Q200
Automotive Grade
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Industrial Grade
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Q @ Freq
Ratings
SVHC Present
Self Resonant Frequency
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

744786133A Description

Short technical summary and product information.

This Würth Elektronik WE-MK series fixed inductor is a multilayer ceramic device with an inductance of 33nH (±5%) measured at 100MHz. It is rated for a maximum DC current of 400mA at a 20K temperature rise, with a maximum DC resistance of 0.7Ω.



The component features a minimum Q-factor of 12 at 100MHz and a self-resonant frequency of 1500MHz minimum. It is unshielded and operates over a temperature range of -55°C to +125°C. The inductor is AEC-Q200 Grade 1 qualified, suitable for automotive and industrial applications.



The part is supplied in an 0603 (1608 metric) surface-mount package with dimensions of 1.60mm x 0.80mm x 0.95mm. Its moisture sensitivity level is MSL 1 (unlimited floor life), and it complies with RoHS, REACH, and halogen-free requirements.

744786133A Quick Information

Product Type: Fixed Inductor
Series: WE-MK 0603A
Canonical Name: Würth Elektronik WE-MK Multilayer Ceramic Inductor 33nH ±5% 400mA 0.7Ω 0603 AEC-Q200
Subcategory: Surface Mount Inductor

744786133A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Compliant

744786133A Estimated Pricing

Qty Low High
1+ $0.22 $0.22
10+ $0.21 $0.21
50+ $0.20 $0.20
100+ $0.19 $0.19
500+ $0.17 $0.17
1,000+ $0.14 $0.14
2,500+ $0.11 $0.11
4,000+ $0.11 $0.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

744786133A Features

  • 33nH multilayer ceramic core inductor.
  • Rated current 400mA at 20K temperature rise.
  • Maximum DC resistance 0.7Ω.
  • Minimum Q-factor 12 at 100MHz.
  • AEC-Q200 Grade 1 qualified.

744786133A Applications

  • RF signal filtering and matching circuits.
  • Automotive electronic control units.
  • High-frequency DC-DC converter applications.
  • Space-constrained portable electronics.

744786133A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of 744786133A?

33 nH at 100MHz with ±5% tolerance.

What is the current rating of this inductor?

Rated current is 400mA, tested at ΔT=20K.

What is the DC resistance?

Maximum DC resistance is 0.7Ω at 20°C.

What is the self-resonant frequency?

Minimum self-resonant frequency is 1500MHz.

What package does this inductor come in?

0603 (1608 Metric) surface-mount package.

Is this inductor qualified for automotive use?

Yes, it is AEC-Q200 Grade 1 qualified.

What is the operating temperature range?

-55°C to +125°C.
