| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
582 pcs
|
582 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Performance Rated Current | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

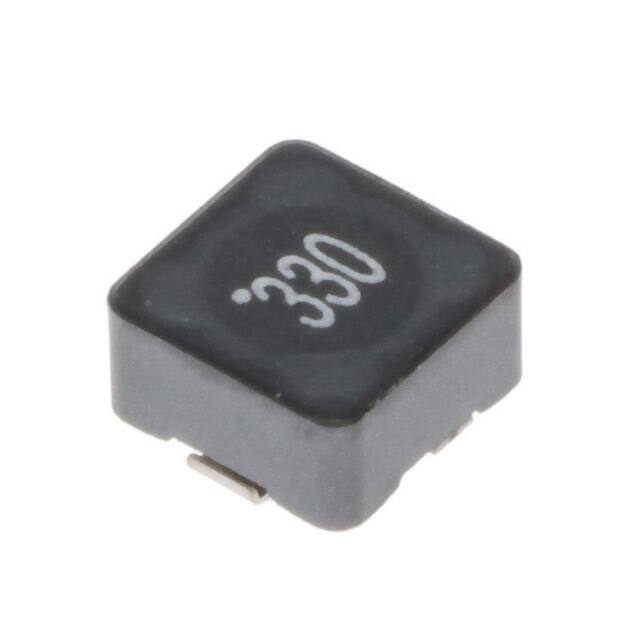

The Würth Elektronik 744777133 is a surface-mount shielded power inductor from the WE-PD series. It features a ferrite drum core with wirewound construction, providing an inductance of 33 µH at 1 kHz and 250 mV with a tolerance of ±20%. The component is rated for a continuous current of 1.13 A based on a 40 K temperature rise, with a performance rated current of 1.9 A per IEC 62024-2-2020 Class C. Saturation current is typically 1.4 A at 10% inductance drop and 1.7 A at 30% drop.
The inductor offers a typical DC resistance of 140 mOhm and a maximum of 170 mOhm, with a self-resonant frequency of 13 MHz. It is designed for a maximum operating voltage of 120 V and operates over a temperature range of -40 °C to +125 °C. The component is shielded to minimize electromagnetic interference and is qualified to AEC-Q200 Grade 1 for automotive reliability.
Packaged in a 7345 (Nonstandard) SMD format measuring 7.3 mm x 7.3 mm with a maximum height of 4.5 mm, this inductor is suitable for power supply and DC-DC converter circuits in space-constrained designs. It is RoHS, REACH, and halogen-free compliant, with an MSL of 1 for unlimited floor life.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.36 | $2.36 |
| 10+ | $2.10 | $2.10 |
| 50+ | $1.95 | $1.95 |
| 100+ | $1.88 | $1.88 |
| 250+ | $1.37 | $1.37 |
| 500+ | $1.34 | $1.34 |
| 1,000+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 33 µH at 1 kHz and 250 mV, with a tolerance of ±20%.
The rated current is 1.13 A maximum, based on a temperature rise of 40 K. The performance rated current per IEC 62024-2-2020 Class C is 1.9 A maximum.
The typical DC resistance is 140 mOhm, with a maximum of 170 mOhm at 20 °C.
The typical self-resonant frequency is 13 MHz.
The package is 7345 (Nonstandard) measuring 7.3 mm x 7.3 mm with a maximum height of 4.5 mm. It is a surface-mount device.
Yes, it is AEC-Q200 qualified (Grade 1).
The operating temperature range is -40 °C to +125 °C.
