| Category | |
| Manufacturer Name | |
| Capacitance | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

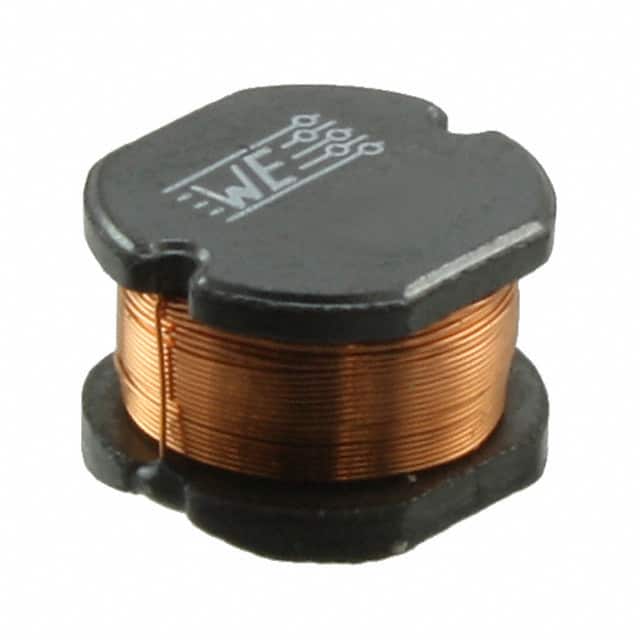

The Würth Elektronik 744776360 is a drum core, wirewound fixed inductor designed for surface mount applications. It offers an inductance of 6.0 mH measured at 1 kHz and 250 mV, with a tolerance of ±10%. The DC resistance is specified as 16.7 Ω maximum and 14.0 Ω typical at 20°C. The rated current is 0.23 A maximum based on a 40K temperature rise, and the saturation current is 0.27 A typical. The self-resonant frequency is at least 570 kHz, and the parasitic capacitance is 13 µF reference.
The inductor uses a ferrite core and is unshielded. It is housed in a nonstandard surface mount package with dimensions of 10.2 mm length, 9.0 mm width, and 6.9 mm height. The operating temperature range is -40°C to 125°C. The component is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
This inductor is suitable for general electronic equipment such as power supply filtering, energy storage in DC-DC converters, and low-frequency EMI suppression. It is not authorized for safety-critical or life-support applications without a specific agreement.
6.0 mH at 1 kHz/250 mV.
0.23 A maximum (ΔT=40K).
16.7 Ω maximum, typical 14.0 Ω at 20°C.
570 kHz minimum.
10.2 mm x 9.0 mm x 6.9 mm, nonstandard surface mount.
-40°C to 125°C.
No, it is unshielded.
