| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ @ 20 °C) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

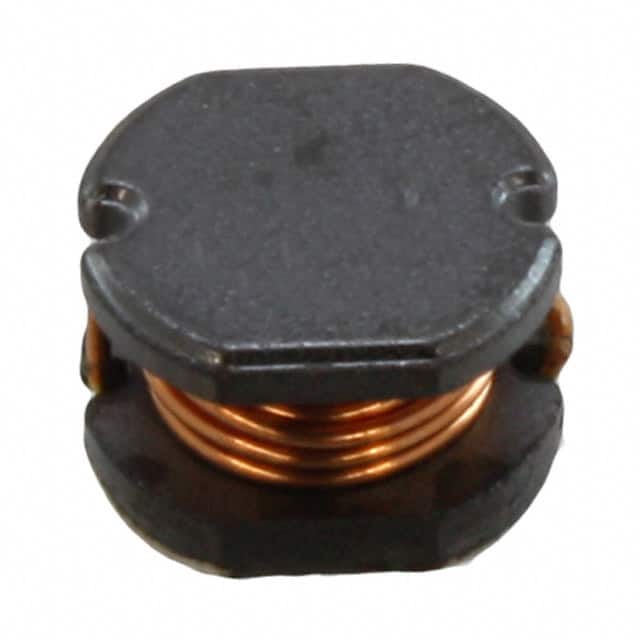

The Würth Elektronik 744775147 is a fixed power inductor from the WE-PD2 series. It features a drum core, wirewound construction with a ferrite core and is unshielded. The inductor offers an inductance of 47µH with ±10% tolerance, measured at 10kHz/100mV. It is rated for a maximum current of 1.17A (based on a 40K temperature rise) and has a typical saturation current of 1.24A. DC resistance is 0.134Ω typical and 0.18Ω maximum. The self-resonant frequency is 12MHz typical. The component operates over a temperature range of -40°C to +125°C and is rated for a maximum operating voltage of 120V. It is supplied in a surface-mount nonstandard package with dimensions 7.80mm x 7.00mm x 5.50mm. The inductor is RoHS, REACH, and Halogen-free compliant, with MSL Level 1. It is suitable for power supply and DC-DC converter applications requiring efficient energy storage and filtering in a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $2.01 | $2.01 |
| 50+ | $1.87 | $1.87 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.58 | $1.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
47µH ±10% at 10kHz/100mV.
1.17A maximum at ΔT=40K.
0.134Ω typical, 0.18Ω maximum at 20°C.
12MHz typical.
Surface mount, nonstandard package, dimensions 7.8x7.0x5.5mm.
-40°C to +125°C.
No, it is unshielded.
