| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,747 pcs
|
1747 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,747 pcs
|
1747 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
111 pcs
|
111 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

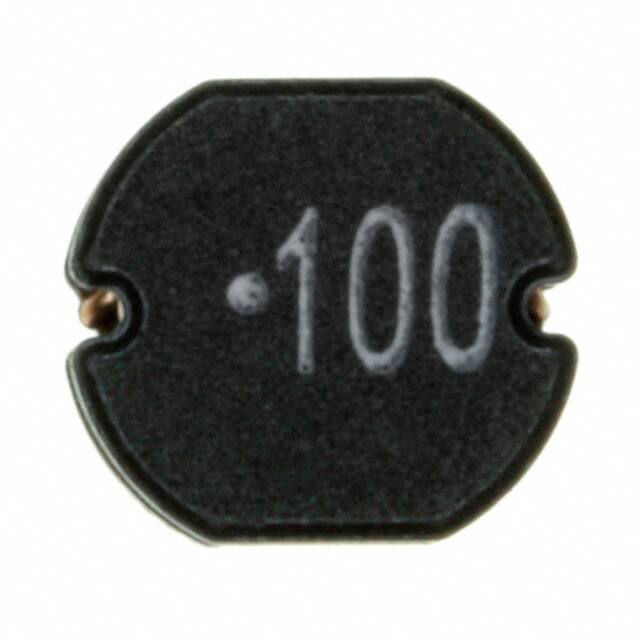

The 74477510 is a surface mount power inductor from Würth Elektronik's WE-PD2 series. It offers an inductance of 10 µH with ±10% tolerance, measured at 10 kHz and 100 mV. The rated current is 2.3 A maximum (40 K temperature rise) with a typical saturation current of 2.95 A. DC resistance is 0.044 Ω typical and 0.07 Ω maximum at 20°C. The self-resonant frequency is 28 MHz typical, and the maximum operating voltage is 120 V DC.
The inductor features an unshielded ferrite drum core with wirewound construction. It is designed for a wide operating temperature range of -40°C to +125°C. The component is packaged in a 7.80 mm x 7.00 mm x 4.95 mm nonstandard surface mount case. Recommended land pattern details are available in the datasheet.
This inductor is RoHS3, REACH, and halogen free compliant, with MSL level 1 (unlimited). It is suitable for use in DC-DC converters, power supply filters, and general power management applications requiring low DC resistance and high current handling.
The inductance is 10 µH at 10 kHz and 100 mV, with a tolerance of ±10%.
The rated current is 2.3 A maximum, based on a 40 K temperature rise.
The DC resistance is 0.044 Ω typical and 0.07 Ω maximum at 20°C.
The self-resonant frequency is 28 MHz typical.
The inductor is surface mount in a nonstandard package with dimensions 7.80 mm x 7.00 mm x 4.95 mm.
The operating temperature range is -40°C to +125°C.
Yes, the part is RoHS3 compliant (2011/65/EU & 2015/863). It is also REACH unaffected and halogen free.
