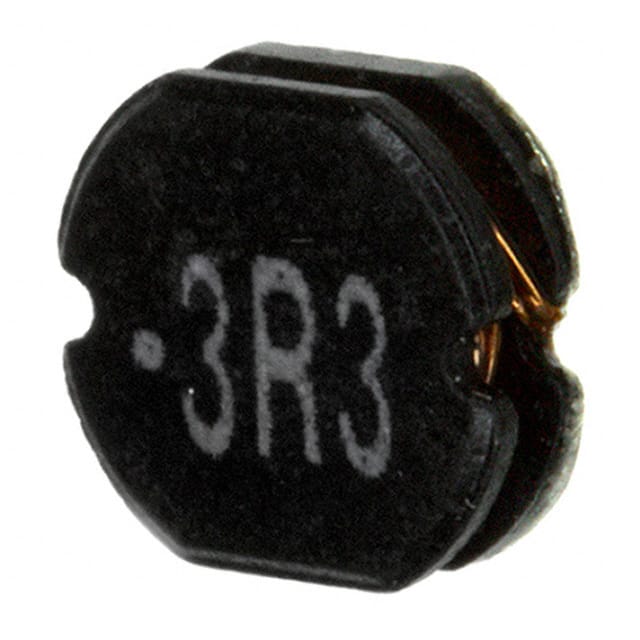

7447745033 Würth Elektronik 7447745033 is a 3.3µH fixed inductor rated at 3A with a maximum DC resistance of 49mOhm, unshielded, in a surface mount package.
Mfr Part #:

7447745033

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 7447745033 is a 3.3µH fixed inductor rated at 3A with a maximum DC resistance of 49mOhm, unshielded, in a surface mount package.
✓ Total Stock: 47 pcs

7447745033 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
47 pcs
On Request
47 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7447745033 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

7447745033 Description

Short technical summary and product information.

The Würth Elektronik 7447745033 is a fixed inductor featuring a drum core, wirewound construction with a ferrite core. It offers an inductance of 3.3µH with a tolerance of ±20% and a rated current of 3A. The maximum DC resistance is 49mOhm, making it suitable for power applications where low losses are desired.



This unshielded inductor has a self-resonant frequency of 57MHz, indicating good high-frequency performance. The component is designed for surface mount assembly in a nonstandard package, with dimensions of 5.80mm length, 5.20mm width, and 2.30mm height.



The operating temperature range spans -40°C to 125°C, allowing use in a wide variety of environments. Typical applications include DC-DC converters, power line filtering, and energy storage circuits requiring a compact, cost-effective inductive solution.

7447745033 Quick Information

Product Type: Fixed Inductor
Canonical Name: Würth Elektronik 7447745033 Fixed Inductor, Drum Core, Wirewound, 3.3µH, 3A, Unshielded
Subcategory: Drum Core, Wirewound

7447745033 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7447745033 Features

  • 3.3µH drum core wirewound inductor.
  • Rated for 3A continuous current.
  • Maximum DC resistance of 49mOhm.
  • Unshielded with ferrite core material.
  • Surface mount package, -40°C to 125°C range.

7447745033 Applications

  • Used in DC-DC converter circuits.
  • Suitable for power line filtering.
  • Ideal for energy storage applications.
  • Works in compact SMD power modules.

7447745033 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 7447745033?

The inductance is 3.3 µH with a tolerance of ±20%.

What is the maximum DC resistance of this inductor?

The maximum DC resistance is 49 mOhm.

What is the current rating for the 7447745033?

The rated current is 3 A.

Is this inductor shielded or unshielded?

This inductor is unshielded.

What is the self-resonant frequency of the 7447745033?

The self-resonant frequency is 57 MHz.

What operating temperature range does this inductor support?

The operating temperature range is -40°C to 125°C.

What is the package size of the 7447745033?

The package size is 5.80 mm length, 5.20 mm width, and 2.30 mm height in a nonstandard case.
