| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

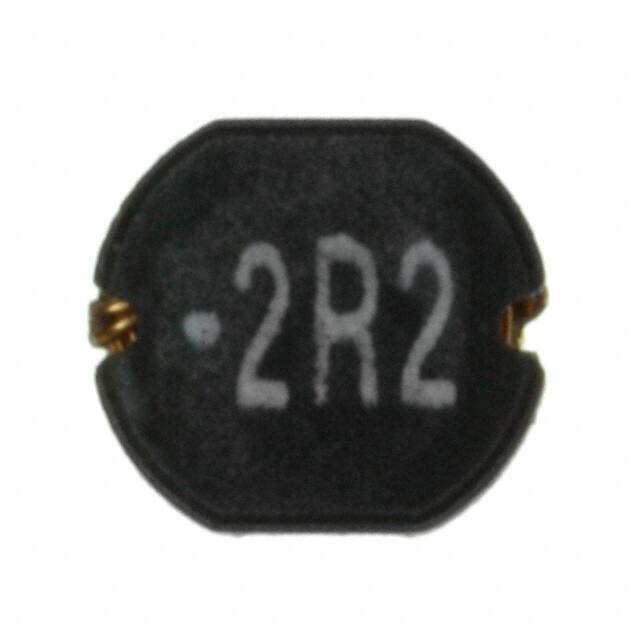

The 7447745022 is a fixed inductor from Würth Elektronik, featuring a 2.2µH inductance with ±20% tolerance. It is rated for a continuous current of 3.6A and has a maximum DC resistance of 36mOhm. The saturation current is 3.5A. The self-resonant frequency is 64MHz. This unshielded drum core wirewound inductor uses a ferrite core. It is designed for surface mount mounting in a nonstandard package with dimensions 5.80mm x 5.20mm x 2.30mm. The operating temperature range is -40°C to 125°C. The component is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
| 10+ | $1.80 | $1.80 |
| 50+ | $1.62 | $1.62 |
| 100+ | $1.50 | $1.50 |
| 500+ | $1.44 | $1.44 |
| 1,000+ | $1.32 | $1.32 |
| 2,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µH with ±20% tolerance.
3.6 A continuous current, with saturation current of 3.5 A.
36 mOhm maximum.
64 MHz.
Nonstandard surface mount package, 5.80 mm x 5.20 mm x 2.30 mm.
-40°C to 125°C.
No, it is unshielded.
