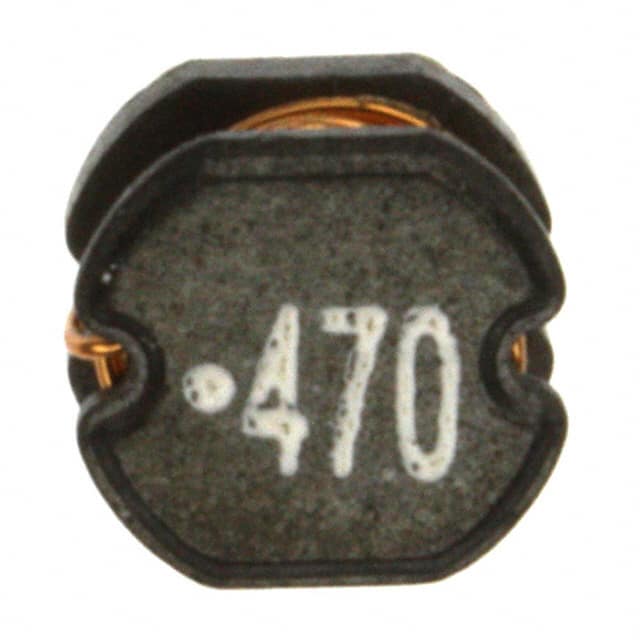

744774147 Fixed inductor, 47 µH, ±15% tolerance, 860 mA rated current, 370 mΩ max DCR, unshielded, surface mount.
Mfr Part #:

744774147

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Fixed inductor, 47 µH, ±15% tolerance, 860 mA rated current, 370 mΩ max DCR, unshielded, surface mount.
✓ Total Stock: 292 pcs
$ Price Range: $1.20 - $1.88

744774147 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
292 pcs
On Request
292 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744774147 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Industrial Grade
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Shielding
Storage Temperature
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

744774147 Description

Short technical summary and product information.

The Würth Elektronik 744774147 is a fixed inductor from the WE-PD2 series, offering 47 µH inductance with ±15% tolerance. It is rated for 860 mA continuous current (ΔT = 40 K) and can handle a saturation current of 1 A (ΔL/L < 10%). The DC resistance is 260 mΩ typical, 370 mΩ maximum at 20°C. The self-resonant frequency is 11.5 MHz typical. This unshielded inductor uses a drum core with ferrite material and a wirewound winding. It is housed in a nonstandard surface mount package measuring 5.8 mm x 5.2 mm x 4.85 mm. The operating temperature range is -40°C to +125°C, with an ambient temperature range of -40°C to +85°C for rated current. Storage conditions are below 40°C and 75% RH. The component is RoHS, REACH, and Halogen Free compliant, with an MSL of 1 (unlimited). It is suitable for power supply filtering, DC-DC converter output filtering, and other low-profile power applications.

744774147 Quick Information

Product Type: Fixed Inductor
Series: WE-PD2
Canonical Name: Würth Elektronik WE-PD2 744774147 47 µH Unshielded Wirewound Power Inductor
Subcategory: Power Inductor

744774147 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: Conform or declared (EC)1907/2006
Lead Free: Yes

744774147 Estimated Pricing

Qty Low High
1+ $1.88 $1.88
10+ $1.80 $1.80
50+ $1.62 $1.62
100+ $1.50 $1.50
250+ $1.44 $1.44
500+ $1.32 $1.32
1,500+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

744774147 Features

  • 47 µH inductance with ±15% tolerance.
  • Rated current of 860 mA.
  • Maximum DC resistance of 370 mΩ.
  • Unshielded drum core ferrite construction.
  • Surface mount package, 5.8x5.2x4.85 mm.

744774147 Applications

  • Use in DC-DC converter output filtering.
  • Suitable for power supply line filtering.
  • Ideal for low profile power applications.

744774147 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 744774147?

47 µH at 10 kHz, 100 mV.

What is the tolerance of the inductance?

±15%.

What is the rated current of this inductor?

860 mA maximum at ΔT = 40 K.

What is the DC resistance of the 744774147?

Typical 260 mΩ, maximum 370 mΩ at 20°C.

What is the self-resonant frequency?

11.5 MHz typical.

What is the operating temperature range?

-40°C to +125°C.

What is the package size of this inductor?

5.8 mm x 5.2 mm x 4.85 mm, nonstandard surface mount.
