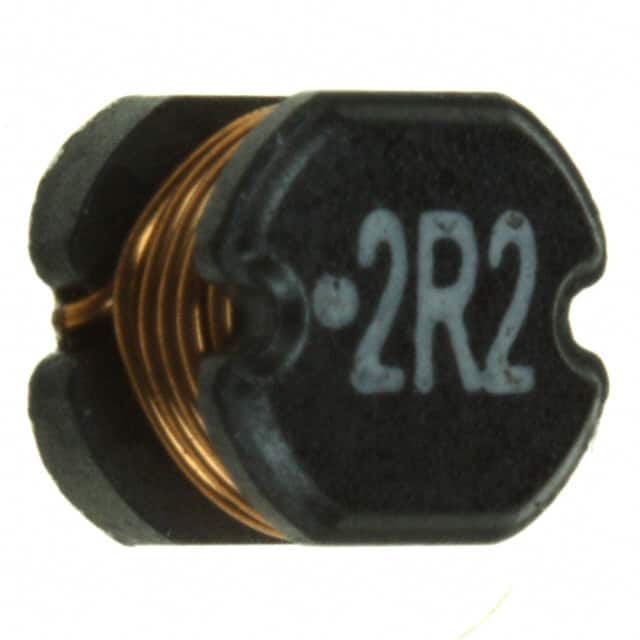

The Würth Elektronik 744774022 is a fixed SMD power inductor from the WE-PD2 series. It offers a nominal inductance of 2.2 µH with ±20% tolerance, measured at 10 kHz and 100 mV. The rated current is 4.6 A maximum under a temperature rise of 40 K, and the saturation current is 8.2 A typical. The DC resistance is 0.026 Ω typical and 0.041 Ω maximum at 20°C. The self resonant frequency is 54 MHz typical, and the maximum operating voltage is 120 V DC.
This inductor uses a drum core ferrite core with wirewound construction and is unshielded. It is designed for surface mount assembly in a nonstandard package measuring 5.80 mm x 5.20 mm x 4.85 mm. The operating temperature range is -40°C to 125°C, with ambient temperature up to 85°C for rated current. The component is RoHS compliant, REACH conform, and halogen free per JEDEC JS709B and IEC 61249-2-21. Moisture sensitivity level is 1.
Typical applications include power supply filtering, DC-DC converters, and energy storage in switching regulators. The unshielded design should be considered for EMI-sensitive circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
| 10+ | $1.80 | $1.80 |
| 50+ | $1.62 | $1.62 |
| 100+ | $1.50 | $1.50 |
| 250+ | $1.44 | $1.44 |
| 500+ | $1.32 | $1.32 |
| 1,500+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µH at 10 kHz/100 mV, ±20% tolerance.
4.6 A maximum (ΔT = 40 K).
Typical 0.026 Ω, maximum 0.041 Ω at 20°C.
54 MHz typical.
Nonstandard surface mount package, 5.80 mm x 5.20 mm x 4.85 mm.
-40°C to 125°C.
Yes, compliant with 2011/65/EU and 2015/863.
