| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
328 pcs
|
328 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ @ 20 °C) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

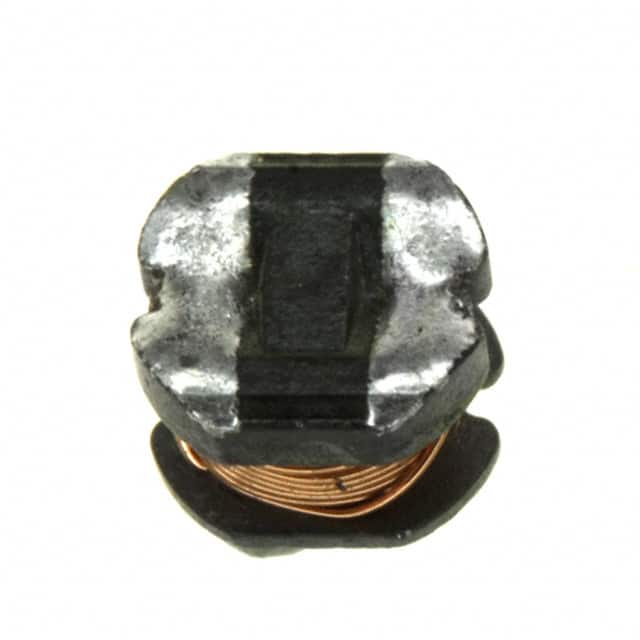

The Würth Elektronik 744773156 is a fixed inductor from the WE-PD2 series. It offers an inductance of 56 µH with ±10% tolerance. The rated current is 640 mA (ΔT=40 K), with a saturation current of 750 mA typical. DC resistance is 0.714 Ω typical and 0.937 Ω maximum. The self-resonant frequency is 16 MHz typical. Operating voltage is 120 V DC maximum. The component is unshielded with a drum core, wirewound construction on a ferrite core. It is surface mountable in a nonstandard package with dimensions 4.5 mm x 3.2 mm x 4.0 mm. Operating temperature range is -40°C to +125°C. This inductor is suitable for power applications requiring a compact, high-current inductor. It is RoHS, REACH, and Halogen Free compliant, with MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.72 | $1.72 |
| 50+ | $1.55 | $1.55 |
| 100+ | $1.44 | $1.44 |
| 250+ | $1.38 | $1.38 |
| 500+ | $1.27 | $1.27 |
| 1,500+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
56 µH at 10 kHz, 100 mV, ±10% tolerance.
640 mA maximum (ΔT=40 K).
0.714 Ω typical, 0.937 Ω maximum at 20°C.
16 MHz typical.
Surface mount, nonstandard package, dimensions 4.5x3.2x4.0 mm.
-40°C to +125°C.
Yes, compliant with 2011/65/EU and 2015/863.
