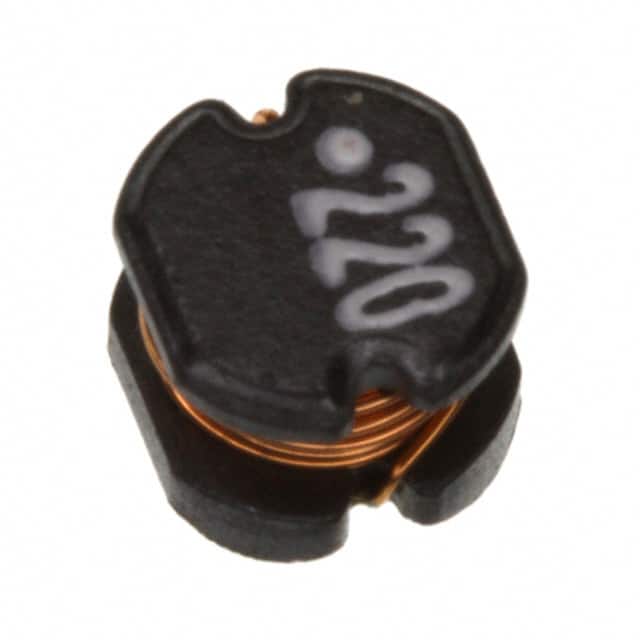

The Würth Elektronik 744773122 is a WE-PD2 series SMT power inductor featuring a drum core wirewound construction with a ferrite core. It offers an inductance of 22µH with ±20% tolerance, rated for a continuous current of 1A (ΔT=40K) and a saturation current of 1.22A typical. The DC resistance is 0.261Ω typical and 0.37Ω maximum at 20°C. This unshielded inductor has a self-resonant frequency of 20MHz typical and a maximum operating voltage of 120V DC.
The component is housed in a nonstandard SMD package with dimensions 4.5mm x 3.2mm x 4.0mm. It operates over a temperature range of -40°C to +125°C, with an ambient temperature range for rated current of -40°C to +85°C. The inductor is RoHS, REACH, and halogen free compliant, with MSL level 1 (unlimited).
Typical applications include power supply circuits, DC-DC converters, and general filtering in electronic equipment where a compact surface mount power inductor is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.71 | $1.71 |
| 50+ | $1.54 | $1.54 |
| 100+ | $1.43 | $1.43 |
| 250+ | $1.37 | $1.37 |
| 500+ | $1.26 | $1.26 |
| 1,500+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22µH with a tolerance of ±20%, measured at 10kHz/100mV.
The rated current is 1A maximum, defined by a temperature rise of 40K.
The typical DCR is 0.261Ω and the maximum DCR is 0.37Ω at 20°C.
The self-resonant frequency is 20MHz typical.
The inductor comes in a nonstandard SMD package with dimensions 4.5mm x 3.2mm x 4.0mm (4532). Mounting type is surface mount.
The operating temperature range is -40°C to +125°C. The ambient temperature for rated current is -40°C to +85°C.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863.
