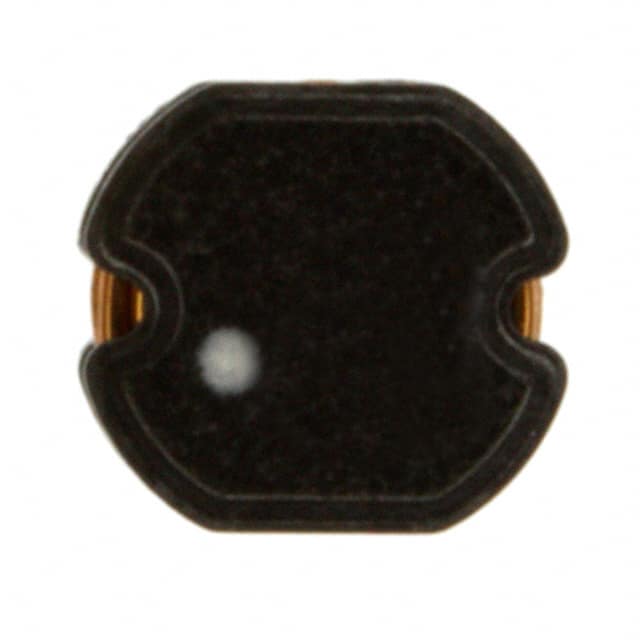

The Würth Elektronik 744773047 is a surface mount power inductor from the WE-PD2 series. It features a drum core, wirewound construction with a ferrite core and is unshielded. The inductor provides 4.7 µH inductance with ±20% tolerance, measured at 10 kHz/100 mV.
Electrical characteristics include a rated current of 1.82 A (maximum, ΔT = 40 K), typical saturation current of 2.46 A (|ΔL/L| < 10%), typical DC resistance of 0.059 Ω and maximum DC resistance of 0.11 Ω at 20 °C. The self resonant frequency is 50 MHz typical, and the maximum operating voltage is 120 V DC.
The component is rated for operating temperatures from -40 °C to +125 °C, with ambient temperature (referring to IR) from -40 °C to +85 °C. Storage conditions in original packaging are below 40 °C and below 75% relative humidity. The moisture sensitivity level is 1, allowing unlimited floor life.
Mechanically, the inductor measures 4.50 mm x 4.00 mm with a height of 3.50 mm, and uses a nonstandard surface mount package (size code 4532). It is RoHS compliant, REACH conform or declared, and halogen free per JEDEC JS709B and IEC 61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.72 | $1.72 |
| 50+ | $1.55 | $1.55 |
| 100+ | $1.44 | $1.44 |
| 250+ | $1.38 | $1.38 |
| 500+ | $1.27 | $1.27 |
| 1,500+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH with ±20% tolerance, measured at 10 kHz/100 mV.
The rated current is 1.82 A maximum, measured at ΔT = 40 K.
The typical DC resistance is 0.059 Ω and the maximum is 0.11 Ω, both at 20 °C.
The self resonant frequency is 50 MHz typical.
The inductor uses a nonstandard surface mount package with size code 4532, measuring 4.50mm x 4.00mm x 3.50mm.
The operating temperature range is -40 °C to +125 °C.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863.
