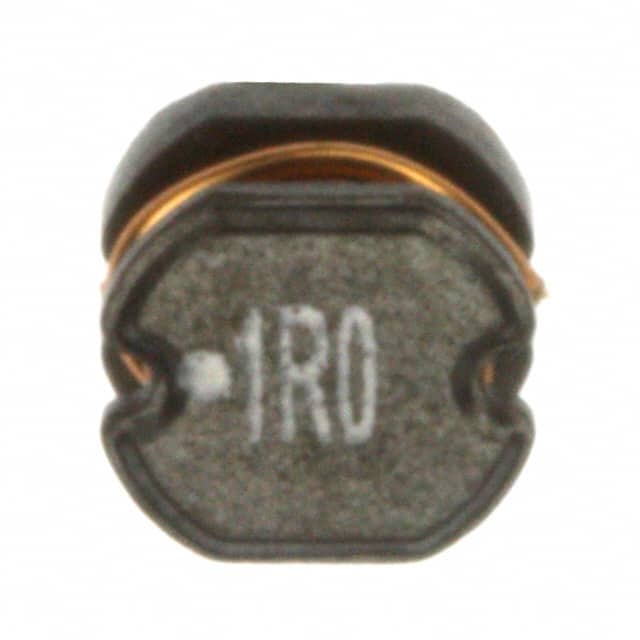

7447730 The 7447730 is a 1 µH unshielded power inductor from Würth Elektronik's WE-PD2 series. It is rated for 4 A DC current with a maximum DCR of 49 mOhm.
Mfr Part #:

7447730

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 7447730 is a 1 µH unshielded power inductor from Würth Elektronik's WE-PD2 series. It is rated for 4 A DC current with a maximum DCR of 49 mOhm.
✓ Total Stock: 27 pcs
$ Price Range: $1.08 - $1.59

7447730 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
27 pcs
On Request
27 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7447730 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Ambient Temperature (Rated Current)
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Operating Voltage
Shielding
Storage Conditions
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

7447730 Description

Short technical summary and product information.

The 7447730 is a surface mount power inductor from Würth Elektronik, part of the WE-PD2 series. It features an inductance of 1 µH with ±20% tolerance, measured at 10 kHz and 100 mV. The component is rated for a continuous current of 4 A (ΔT = 40 K) and has a typical saturation current of 5.72 A. DC resistance is 0.014 Ω typical and 0.049 Ω maximum. The self-resonant frequency is typically 110 MHz, and the maximum operating voltage is 120 V. The inductor uses a ferrite core and is unshielded. It is housed in a 4532 package (4.5 mm x 3.2 mm x 4.0 mm) suitable for surface mount assembly. Operating temperature range is -40°C to 125°C, with ambient temperature for rated current from -40°C to 85°C. The component is RoHS3, REACH, and Halogen Free compliant with MSL 1. Designed for general electronic equipment, it is suitable for power supply circuits, DC-DC converters, and filtering applications.

7447730 Quick Information

Product Type: Fixed Inductor
Series: WE-PD2
Canonical Name: WE-PD2 SMT Power Inductor
Subcategory: Fixed Inductors

7447730 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Compliant

7447730 Estimated Pricing

Qty Low High
1+ $1.59 $1.59
10+ $1.52 $1.52
50+ $1.41 $1.41
100+ $1.34 $1.34
250+ $1.30 $1.30
500+ $1.23 $1.23
1,500+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

7447730 Features

  • 1 µH inductance with ±20% tolerance.
  • Rated for 4 A continuous current.
  • Low DCR of 14 mOhm typical.
  • 110 MHz self-resonant frequency.
  • Unshielded ferrite core construction.

7447730 Applications

  • Used in DC-DC converter output filtering.
  • Suitable for power supply circuits.
  • Ideal for low-profile power management.
  • Applicable in general electronic equipment.

7447730 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 7447730?

1 µH at 10 kHz, 100 mV, ±20% tolerance.

What is the rated current of this inductor?

4 A at ΔT = 40 K.

What is the DC resistance of the 7447730?

0.014 Ω typical, 0.049 Ω maximum at 20°C.

What is the self-resonant frequency?

110 MHz typical.

What package size is the 7447730?

4532 package with dimensions 4.5 mm x 3.2 mm x 4.0 mm.

What is the operating temperature range?

-40°C to 125°C.

Is the inductor shielded?

No, it is unshielded.
