| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type |

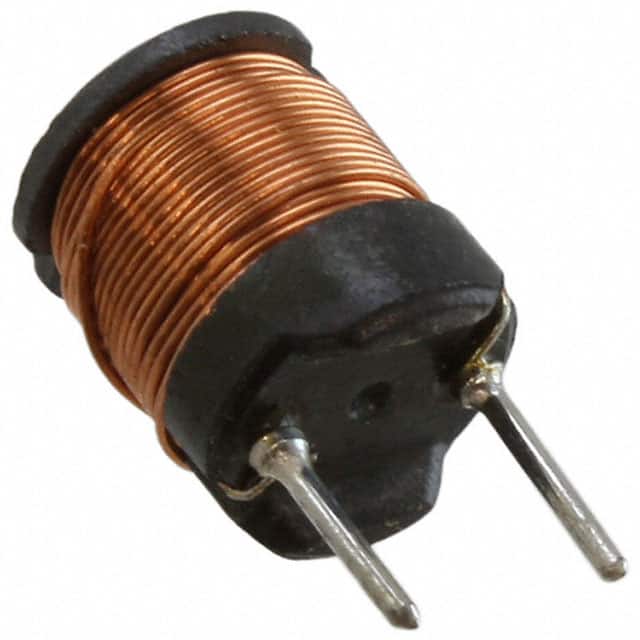

The 744772471 is a fixed inductor manufactured by Würth Elektronik. It features an inductance of 470 µH with a tolerance of ±10%. The component is rated for a DC current of 430 mA and has a maximum DC resistance of 890 mΩ. Its self-resonant frequency is 2.6 MHz.
The inductor uses a ferrite core with a drum core, wirewound construction. It is unshielded and designed for through-hole mounting in a radial, vertical cylinder (open) package. The component measures 7.80 mm in diameter and 10.00 mm in height, and operates over a temperature range of -40°C to 125°C.
This inductor is suitable for power supply filtering, DC-DC converter output filtering, and other general-purpose energy storage applications where moderate current handling and a compact through-hole footprint are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.97 | $0.97 |
| 50+ | $0.90 | $0.90 |
| 100+ | $0.80 | $0.80 |
| 280+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 470 µH with a tolerance of ±10%.
The rated DC current is 430 mA.
The maximum DC resistance is 890 mΩ.
The self-resonant frequency is 2.6 MHz.
The package is a radial, vertical cylinder (open) with through-hole mounting.
The operating temperature range is -40°C to 125°C.
No, the inductor is unshielded.
