| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range (referring to IR) | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type |

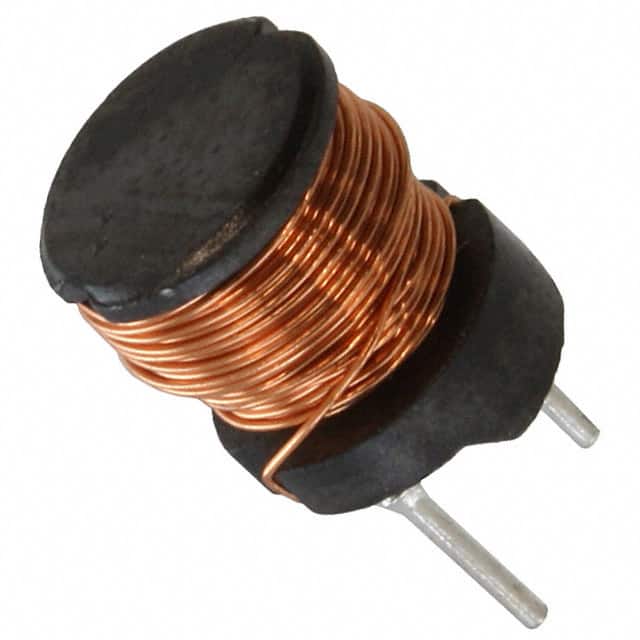

The 744772102 is a fixed inductor from Würth Elektronik, part of the WE-TI series. It features a ferrite core with drum core, wirewound construction. The inductance is 1 mH measured at 1 kHz and 250 mV, with a tolerance of ±5%. The rated current is 0.41 A (ΔT = 40 K), and the saturation current is typically 0.5 A. DC resistance is 1.67 Ω typical and 1.84 Ω maximum. The self-resonant frequency is typically 1.6 MHz. The operating temperature range is -40°C to +125°C, with ambient temperature for rated current from -40°C to +85°C. The inductor is unshielded and comes in a radial, vertical cylinder package with through hole mounting. It is suitable for general electronic equipment where a standard safety level is required. The component is RoHS3 compliant and REACH unaffected, with MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.02 | $1.02 |
| 10+ | $0.97 | $0.97 |
| 50+ | $0.90 | $0.90 |
| 280+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 mH measured at 1 kHz, 250 mV.
0.41 A maximum at ΔT = 40 K.
1.67 Ω typical, 1.84 Ω maximum.
1.6 MHz typical.
Radial, vertical cylinder (open) with through hole mounting.
±5%.
-40°C to +125°C.
