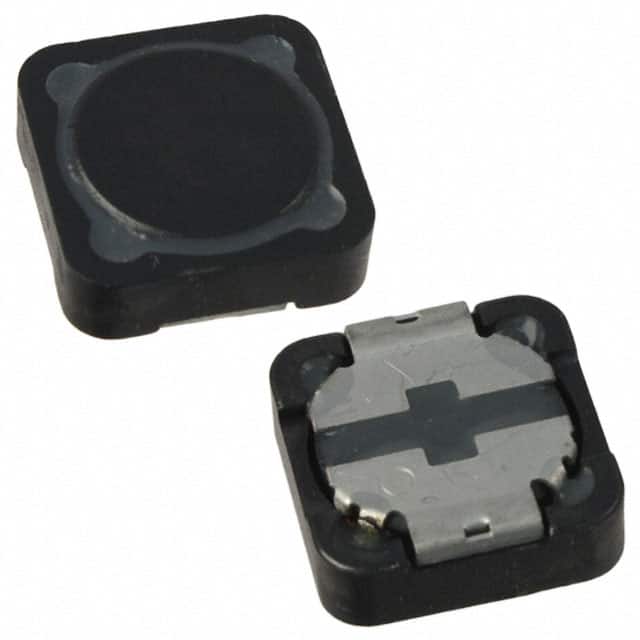

The 7447715006 is a WE-PD series SMT shielded power inductor from Würth Elektronik. It features a ferrite core and drum core wirewound construction, providing 6.8 µH inductance with ±30% tolerance. The component is rated for a continuous current of 4.3 A (ΔT=40K) and can handle a performance rated current of 7.5 A (IEC 62024-2, Class C). Saturation current is 4.7 A at 10% inductance drop and 5.5 A at 30% drop. DC resistance is 20 mΩ typical, 25 mΩ maximum. The self-resonant frequency is 27 MHz typical. Operating voltage is 120 V max.
This inductor is designed for surface mount technology in a nonstandard package measuring 12.0 mm x 12.0 mm with a maximum height of 4.5 mm. It is shielded to minimize EMI. The operating temperature range is -40°C to +125°C, with ambient temperature range of -40°C to +85°C when referring to rated current. It is AEC-Q200 Grade 1 qualified, making it suitable for automotive applications. Moisture sensitivity level is MSL 1 (unlimited).
Typical applications include power supply circuits, DC-DC converters, and EMI filtering in automotive electronics, industrial equipment, and consumer devices requiring high reliability. The component is RoHS compliant, REACH conform, and halogen free per JEDEC JS709B.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $2.18 | $2.18 |
| 50+ | $1.97 | $1.97 |
| 100+ | $1.76 | $1.76 |
| 250+ | $1.61 | $1.61 |
| 500+ | $1.39 | $1.39 |
| 1,000+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6.8 µH at 100 kHz / 5 mA.
4.3 A maximum at 40 K temperature rise (IEC 62024-2). Also performance rated current 7.5 A.
20 mΩ typical, 25 mΩ maximum at 20°C.
27 MHz typical.
12.0 mm x 12.0 mm (length and width), maximum height 4.5 mm, nonstandard SMD package.
Yes, it is AEC-Q200 Grade 1 qualified.
-40°C to +125°C; ambient temperature range -40°C to +85°C when referring to rated current.
