| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Type | |
| Width |

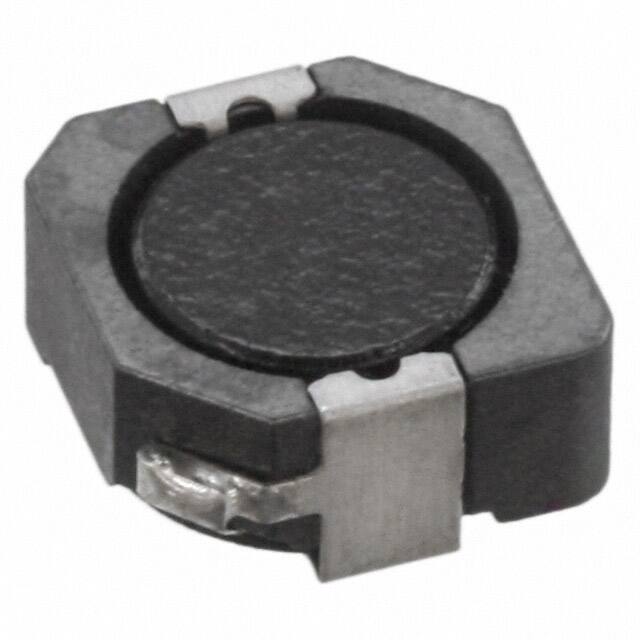

The Würth Elektronik 7447714471 is a high-performance shielded power inductor designed for surface mount applications. It features an inductance of 470 µH with a tolerance of ±20% and can handle a rated current of up to 0.6 A. The inductor also has a saturation current of 0.82 A (typical) and a maximum operating voltage of 120 V.
This component is characterized by a typical DC resistance of 960 mΩ and a maximum of 1100 mΩ at 20 °C. Its self-resonant frequency is typically 2.5 MHz. The inductor operates across a wide temperature range from -40 °C to +150 °C and is AEC-Q200 Grade 1 qualified, making it suitable for demanding automotive and industrial applications. Its compact dimensions are 10.0 mm in length, 10.0 mm in width, and a maximum height of 5.0 mm.
The 7447714471 is RoHS, REACH, and Halogen Free compliant, ensuring adherence to environmental standards. It also has a Moisture Sensitivity Level (MSL) of 1, indicating high reliability in various environmental conditions.
The inductance of the 7447714471 is 470 µH with a tolerance of ±20%.
The rated current for this inductor is 0.6 A maximum, measured at ΔT = 40 K.
The typical DC Resistance (DCR) is 960 mΩ, and the maximum is 1100 mΩ, both measured at 20 °C.
The typical self-resonant frequency is 2.5 MHz.
The inductor has a length of 10.0 mm, a width of 10.0 mm, and a maximum height of 5.0 mm.
The operating temperature range is from -40 °C to +150 °C.
Yes, the 7447714471 is RoHS Compliant according to [2011/65/EU&2015/863].
