| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
697 pcs
|
697 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

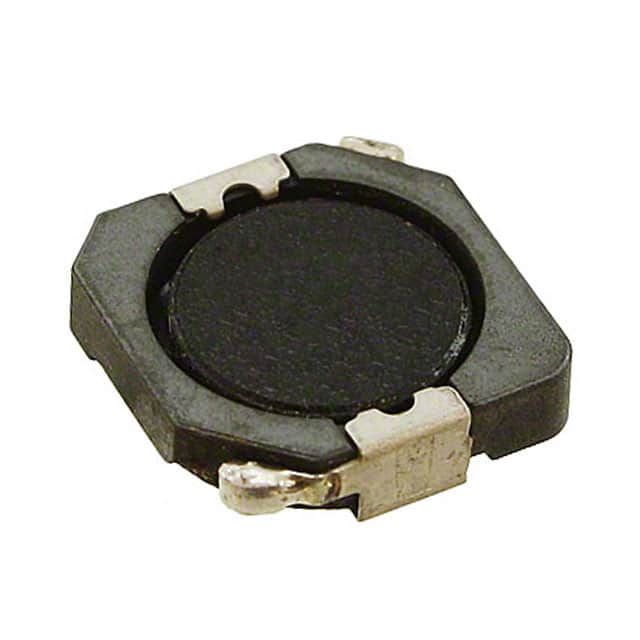

The 7447713100 is a shielded power inductor from Würth Elektronik's WE-PD Performance series. It features a drum core, wirewound construction with ferrite material, providing 10µH inductance with ±20% tolerance. The inductor is rated for a maximum current of 2.6A at a 40K temperature rise, with a saturation current of 4.1A typical. DC resistance is 52mΩ typical and 62mΩ maximum at 20°C.
This component is designed for surface mount technology and comes in a compact 10.00mm x 10.00mm x 3.00mm package (size 1030). It is shielded to minimize electromagnetic interference. The operating temperature range is -40°C to +150°C, making it suitable for harsh environments.
The inductor is AEC-Q200 qualified for automotive applications and complies with RoHS, REACH, and Halogen Free requirements. It has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.24 | $2.24 |
| 10+ | $2.09 | $2.09 |
| 50+ | $1.92 | $1.92 |
| 100+ | $1.69 | $1.69 |
| 500+ | $1.55 | $1.55 |
| 1,000+ | $1.37 | $1.37 |
| 2,000+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10µH ±20% at 100kHz/1mA.
The rated current is 2.6A maximum at a 40K temperature rise.
The DC resistance is 52mΩ typical and 62mΩ maximum at 20°C.
The self-resonant frequency is 25MHz typical.
The package dimensions are 10.00mm x 10.00mm x 3.00mm (size 1030).
The operating temperature range is -40°C to +150°C.
Yes, it is shielded.
