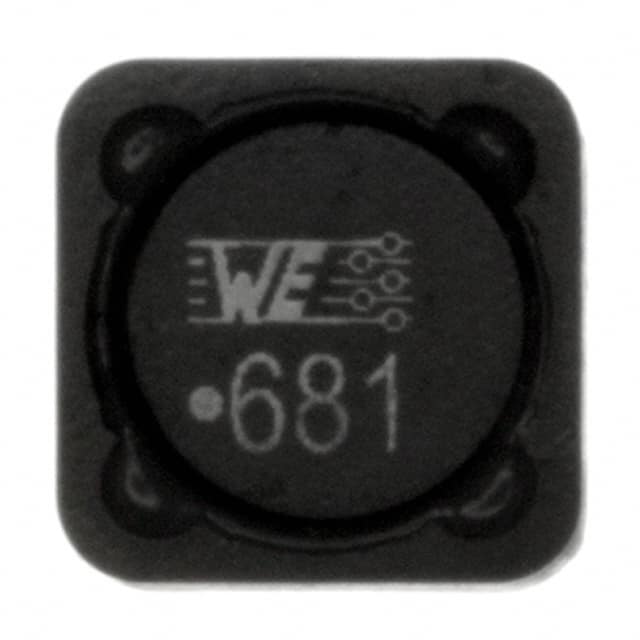

The Würth Elektronik 7447709681 is a surface-mount shielded power inductor from the WE-PD series. It features a ferrite drum core with wirewound construction, providing an inductance of 680 µH at 1 kHz / 250 mV with a tolerance of ±20%.
This inductor is rated for a maximum current of 1.1 A (based on a 40 K temperature rise) and has a typical saturation current of 1.3 A at 10% inductance drop. The typical DC resistance is 660 mΩ, with a maximum of 825 mΩ. It is designed for operating voltages up to 120 V and has a self-resonant frequency of 1.5 MHz.
The component is qualified to AEC-Q200 Grade 1 for automotive applications and operates over a temperature range of -40°C to +125°C. It is RoHS, REACH, and Halogen Free compliant, with an MSL rating of 1 (unlimited). The package size is 12.0 mm x 12.0 mm with a maximum height of 10.0 mm, and it is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.57 | $2.57 |
| 10+ | $2.35 | $2.35 |
| 50+ | $2.21 | $2.21 |
| 100+ | $2.07 | $2.07 |
| 250+ | $1.75 | $1.75 |
| 500+ | $1.62 | $1.62 |
| 1,000+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 680 µH, measured at 1 kHz / 250 mV.
The rated current (IR,40K) is 1.1 A maximum, based on a 40 K temperature rise.
The typical DCR is 660 mΩ, with a maximum of 825 mΩ at 20 °C.
The self-resonant frequency is 1.5 MHz typical.
The package size is 12.0 mm x 12.0 mm with a maximum height of 10.0 mm.
Yes, it is AEC-Q200 Grade 1 qualified.
The operating temperature range is -40°C to +125°C.
