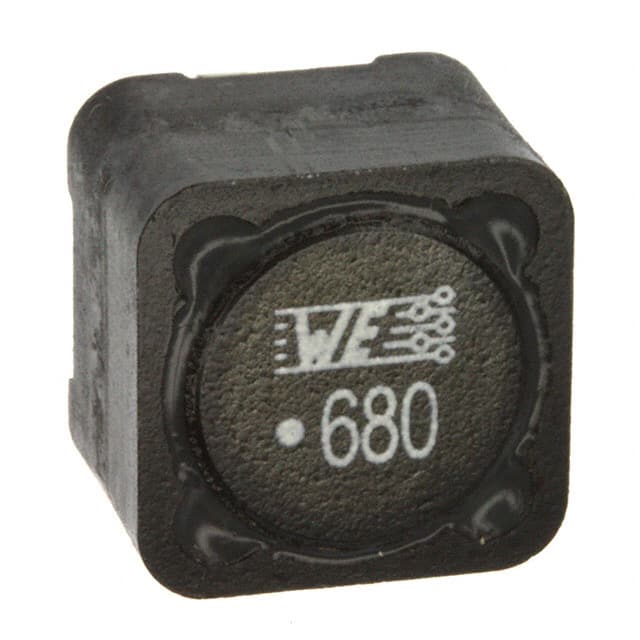

The Würth Elektronik 7447709680 is a shielded drum core wirewound power inductor from the WE-PD series. It offers a nominal inductance of 68µH with ±20% tolerance, measured at 1kHz/250mV. The component is rated for a maximum continuous current of 3.2A (ΔT=40K) and can handle a performance rated current of 3.9A per IEC 62024-2-2020 Class B. Typical saturation current is 3.6A at 10% inductance drop and 4.4A at 30% drop.
The inductor features a maximum DC resistance of 89mΩ at 20°C and a typical self-resonant frequency of 5.5MHz. It is designed for a maximum operating voltage of 120V. The component is AEC-Q200 Grade 1 qualified for automotive applications and operates over a temperature range of -40°C to +125°C.
Packaged in a nonstandard 1210 surface mount case, the inductor measures 12.0mm x 12.0mm with a maximum height of 10.0mm. It is RoHS, REACH, and Halogen Free compliant, with an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.34 | $2.34 |
| 50+ | $2.20 | $2.20 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.74 | $1.74 |
| 500+ | $1.62 | $1.62 |
| 1,000+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 68 µH at 1 kHz/250 mV with a tolerance of ±20%.
The rated current is 3.2 A maximum at a ΔT of 40 K.
The typical DC resistance is 69 mΩ and the maximum is 89 mΩ at 20°C.
The typical self-resonant frequency is 5.5 MHz.
The inductor comes in a nonstandard 1210 surface mount package with dimensions 12.0 mm x 12.0 mm and a maximum height of 10.0 mm.
Yes, it is AEC-Q200 Grade 1 qualified.
The operating temperature range is -40°C to +125°C.
