| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Performance Rated Current (IRP,40K) | |
| Ratings | |
| SVHC Present | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

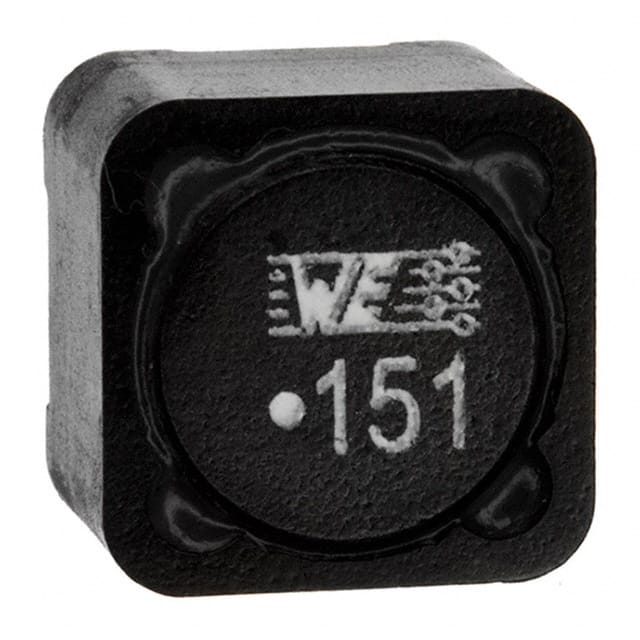

The Würth Elektronik 7447709151 is a shielded SMD power inductor from the WE-PD series. It features a ferrite drum core and wirewound construction, designed for surface mount applications in a compact 12.0 mm x 12.0 mm x 10.0 mm package.
This inductor offers a nominal inductance of 150 µH with a ±20% tolerance. It is rated for a continuous current of 2.1 A (ΔT=40 K) and can handle a saturation current of up to 2.7 A (10% inductance drop) and 3.3 A (30% drop). The DC resistance is typically 151 mΩ with a maximum of 200 mΩ.
The component is qualified to AEC-Q200 Grade 1, making it suitable for automotive applications. It operates over a temperature range of -40°C to +125°C and is compliant with RoHS, REACH, and Halogen Free standards. The self-resonant frequency is 3.5 MHz, and the maximum operating voltage is 120 V.
The device is supplied in a nonstandard SMD package. It is shielded to minimize electromagnetic interference, making it ideal for power supply circuits in space-constrained environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.34 | $2.34 |
| 50+ | $2.20 | $2.20 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.74 | $1.74 |
| 500+ | $1.62 | $1.62 |
| 1,000+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 150 µH, tested at 1 kHz and 250 mV.
The rated current (IR,40K) is 2.1 A maximum, based on a ΔT of 40 K.
The typical DCR is 151 mΩ, with a maximum of 200 mΩ at 20°C.
The typical self-resonant frequency is 3.5 MHz.
It is a surface mount device in a nonstandard package, measuring 12.0 mm x 12.0 mm x 10.0 mm.
Yes, it is AEC-Q200 Grade 1 qualified and automotive approval released.
The operating temperature range is -40°C to +125°C.
