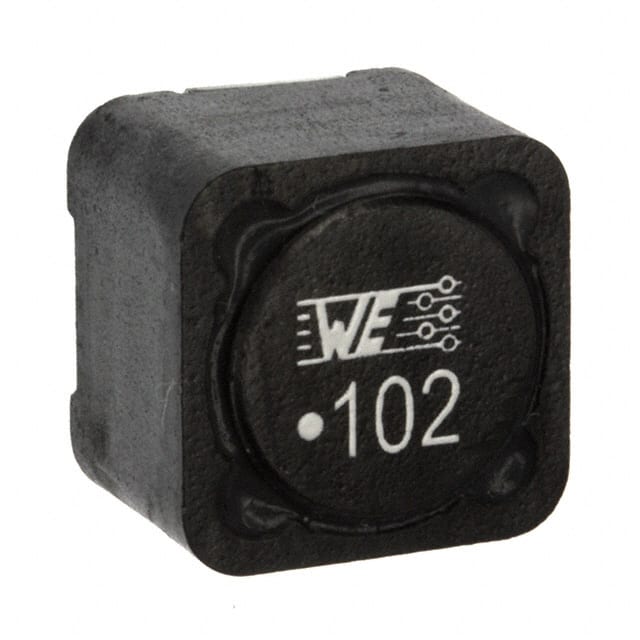

The 7447709102 is a shielded SMD power inductor from Würth Elektronik, part of the WE-PD series. It offers an inductance of 1000 µH at 1 kHz/250 mV with ±20% tolerance. The component is rated for a continuous current of 0.9 A (ΔT=40K) and a performance rated current of 1 A per IEC 62024-2-2020. DC resistance is 930 mΩ typical and 1200 mΩ maximum at 20°C.
The inductor features a ferrite core and is fully shielded to minimize EMI. It has a self-resonant frequency of 1 MHz typical and a maximum operating voltage of 120 V. The operating temperature range is -40°C to 125°C, making it suitable for harsh environments.
The component is AEC-Q200 Grade 1 qualified, ensuring reliability for automotive applications. It comes in a surface mount package with dimensions 12.0 mm x 12.0 mm x 10.0 mm max. The termination style is SMD solder pad.
This inductor is ideal for power supply circuits, DC-DC converters, and EMI filtering in automotive and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.34 | $2.34 |
| 50+ | $2.20 | $2.20 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.66 | $1.66 |
| 500+ | $1.53 | $1.53 |
| 1,000+ | $1.40 | $1.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1000 µH at 1 kHz/250 mV.
0.9 A max (ΔT=40K) and 1 A max per IEC 62024-2-2020.
930 mΩ typical, 1200 mΩ maximum at 20°C.
1 MHz typical.
12.0 mm x 12.0 mm x 10.0 mm max, surface mount, nonstandard package.
Yes, it is AEC-Q200 Grade 1 qualified.
-40°C to 125°C.
