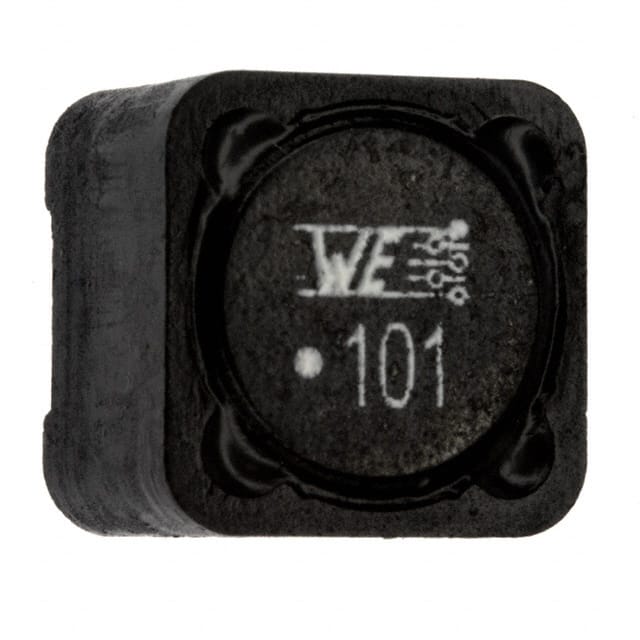

The 7447709101 is a WE-PD series shielded power inductor from Würth Elektronik. It offers an inductance of 100µH ±20% measured at 1kHz/250mV. The component is rated for a continuous current of 2.5A (ΔT=40K) and a performance rated current of 3.2A per IEC 62024-2-2020 Class B. Saturation current is 3.1A typical at 10% inductance drop and 3.8A at 30% drop. DC resistance is 100mΩ typical, 110mΩ maximum. Self-resonant frequency is 4.3MHz typical. The inductor is shielded with a ferrite core and wirewound construction. It is housed in a nonstandard surface mount package with dimensions 12.00mm x 12.00mm x 10.00mm. Operating temperature range is -40°C to +125°C. The component is AEC-Q200 Grade 1 qualified for automotive applications. It is RoHS compliant, REACH conform, and halogen free according to JEDEC JS709B. Moisture sensitivity level is MSL 1. This inductor is suitable for power supply filtering, DC-DC converters, and EMI suppression in automotive and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.34 | $2.34 |
| 50+ | $2.20 | $2.20 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.74 | $1.74 |
| 500+ | $1.62 | $1.62 |
| 1,000+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100µH ±20% measured at 1kHz, 250mV.
Rated current is 2.5A maximum (ΔT=40K) per IEC 62024-2-2020 Class B. Performance rated current is 3.2A.
100mΩ typical, 110mΩ maximum at 20°C.
Typical self-resonant frequency is 4.3MHz.
Surface mount, nonstandard package, dimensions 12.00mm x 12.00mm x 10.00mm.
Yes, AEC-Q200 Grade 1 automotive qualified.
-40°C to +125°C.
