| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Performance Rated Current | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Storage Conditions | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

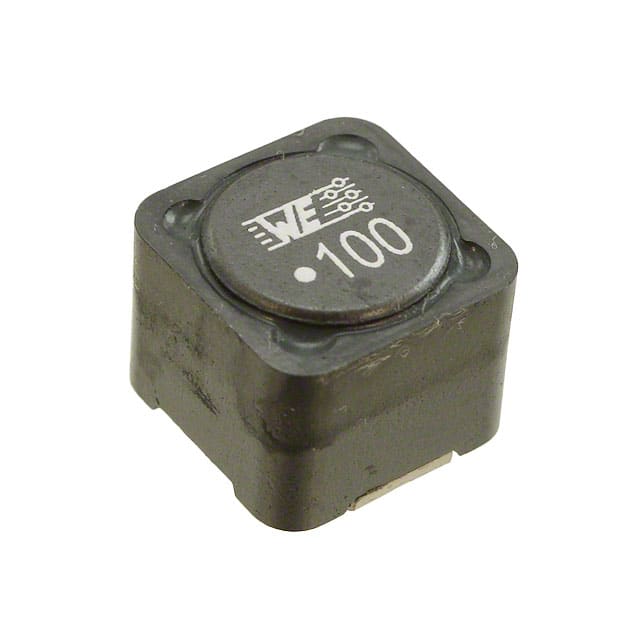

The Würth Elektronik 7447709100 is a surface-mount shielded power inductor from the WE-PD series. It features a drum core wirewound construction with ferrite core material, providing an inductance of 10 µH at 1 kHz/250 mV with ±20% tolerance.
Electrical characteristics include a rated current of 7.1 A (ΔT=40 K) and a performance rated current of 9.5 A per IEC 62024-2-2020 Class B. Saturation current is 10.5 A typical at 10% inductance drop and 13 A at 30% drop. DC resistance is 13 mΩ typical and 21 mΩ maximum. Self-resonant frequency is 21 MHz typical. Maximum operating voltage is 120 V.
The inductor is shielded and measures 12.0 mm x 12.0 mm with a maximum height of 10.0 mm. It is designed for surface mount assembly on nonstandard packages. Operating temperature range is -40°C to +125°C, with ambient temperature for rated current up to +85°C.
The component is RoHS3 compliant, REACH conform, halogen-free per JEDEC JS709B, and has MSL 1 (unlimited). It is AEC-Q200 Grade 1 qualified, making it suitable for automotive and high-reliability applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.34 | $2.34 |
| 50+ | $2.20 | $2.20 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.74 | $1.74 |
| 500+ | $1.62 | $1.62 |
| 1,000+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH at 1 kHz/250 mV with ±20% tolerance.
7.1 A maximum at ΔT=40 K.
13 mΩ typical, 21 mΩ maximum at 20°C.
21 MHz typical.
12.0 mm x 12.0 mm x 10.0 mm max, nonstandard SMD package.
-40°C to +125°C.
Yes, AEC-Q200 Grade 1.
