| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
622 pcs
|
622 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IRP) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Performance Rated Current (IRP,40K) | |
| Rated Current (IR,40K) | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

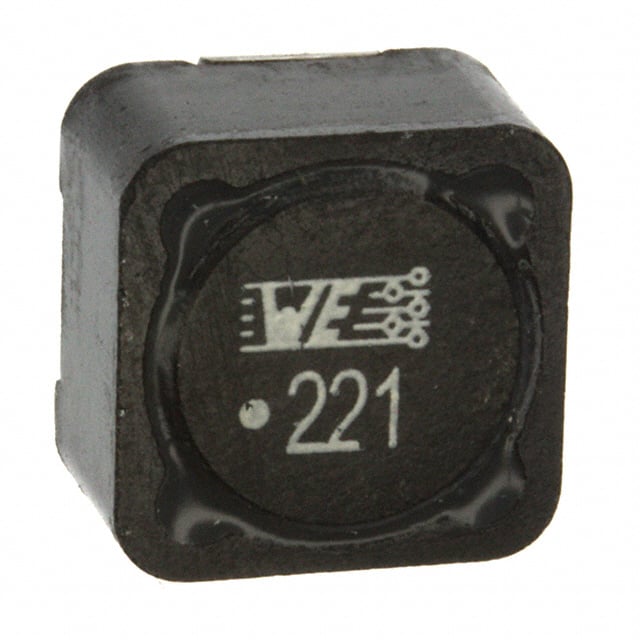

The 744770222 is a shielded surface-mount power inductor from Würth Elektronik, part of the WE-PD series. It features a drum core with ferrite material and wirewound construction, providing a nominal inductance of 220 µH with ±20% tolerance. The inductor is rated for a maximum DC current of 1.4 A (ΔT = 40 K) and a performance rated current of 2 A per IEC 62024-2-2020. Its DC resistance is 230 mΩ typical and 275 mΩ maximum, with a self-resonant frequency of 3.8 MHz typical.
This component is designed for power applications requiring high current handling and low losses. It operates over a temperature range of -40°C to +125°C, with an ambient temperature range of -40°C to +85°C for the rated current. The inductor is shielded to minimize electromagnetic interference, making it suitable for noise-sensitive circuits.
The 744770222 is qualified to AEC-Q200 Grade 1, making it suitable for automotive and other high-reliability applications. It is RoHS3 compliant, REACH conform, and halogen-free. The component is surface-mount with a nonstandard package size (12.0 mm × 12.0 mm × 8.0 mm), and it has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $2.24 | $2.24 |
| 50+ | $2.08 | $2.08 |
| 100+ | $1.90 | $1.90 |
| 250+ | $1.70 | $1.70 |
| 500+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 220 µH with ±20% tolerance, measured at 100 kHz/250 mV.
The rated current is 1.4 A maximum (ΔT = 40 K) per IEC 62024-2-2020, with a performance rated current of 2 A.
The DC resistance is 230 mΩ typical and 275 mΩ maximum at 20°C.
The self-resonant frequency is 3.8 MHz typical.
The package is nonstandard, with dimensions of 12.0 mm × 12.0 mm × 8.0 mm (length × width × height).
