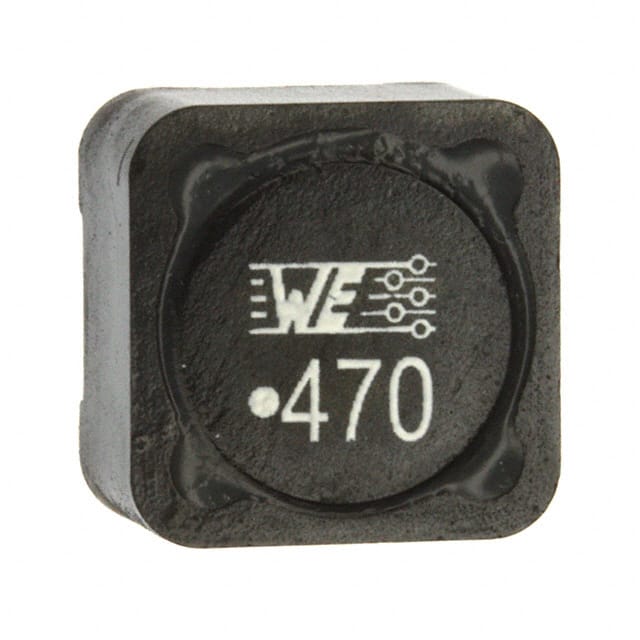

The 744770147 from Würth Elektronik is a shielded surface-mount power inductor in the WE-PD series. It offers an inductance of 47 µH at 100 kHz/250 mV with ±20% tolerance. The inductor is rated for a current of 3 A (maximum) for a 40 K temperature rise, with a performance rated current of 4.25 A per IEC 62024-2-2020. Saturation current is typically 3.3 A at 10% inductance drop and 4.3 A at 30% drop. DC resistance is 53 mΩ typical, 64 mΩ maximum. Self-resonant frequency is 7.9 MHz typical. Operating voltage is 120 V DC maximum. The operating temperature range is -40°C to +125°C. The component is shielded, utilizes a ferrite core and wirewound construction, and is packaged in a nonstandard SMD case measuring 12.00 mm × 12.00 mm × 8.00 mm maximum. It is fully compliant with RoHS, REACH, Halogen Free, and is AEC-Q200 Grade 1 qualified for automotive applications.
The inductance is 47 µH at 100 kHz/250 mV with a tolerance of ±20%.
The rated current (IR,40K) is 3 A maximum for a 40 K temperature rise. The performance rated current (IRP,40K) is 4.25 A maximum per IEC 62024-2-2020.
DC resistance is 53 mΩ typical and 64 mΩ maximum at 20°C.
Saturation current is 3.3 A typical at 10% inductance drop and 4.3 A typical at 30% inductance drop.
The self-resonant frequency is 7.9 MHz typical.
The inductor comes in a nonstandard SMD package with dimensions 12.00 mm × 12.00 mm × 8.00 mm maximum. Mounting is surface mount.
Yes, it is AEC-Q200 Grade 1 qualified.
