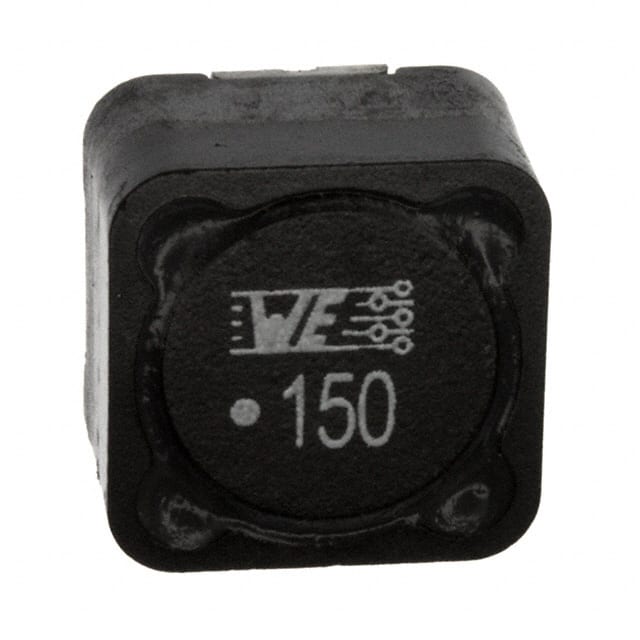

The Würth Elektronik 744770115 is a surface-mount shielded power inductor from the WE-PD series. It features a ferrite core and is designed for high current applications. The inductor has an inductance of 15 µH with a tolerance of ±20%, measured at 100 kHz and 250 mV.
Key electrical specifications include a rated current of 5.8 A (ΔT=40K) and a performance rated current of 7.4 A per IEC 62024-2-2020. The saturation current is 6 A typical at 10% inductance drop and 7.8 A typical at 30% drop. DC resistance is 18 mΩ typical and 23 mΩ maximum. The self-resonant frequency is 14.5 MHz typical, and the maximum operating voltage is 120 V DC.
The component is AEC-Q200 qualified (Grade 1) for automotive applications. It is RoHS, REACH, and Halogen Free compliant, with an MSL of 1 (unlimited). The operating temperature range is -40°C to +125°C. The package is a nonstandard 12.0 mm x 12.0 mm x 8.0 mm surface-mount case.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.40 | $2.40 |
| 10+ | $2.24 | $2.24 |
| 50+ | $2.08 | $2.08 |
| 250+ | $1.73 | $1.73 |
| 500+ | $1.52 | $1.52 |
| 2,500+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 15 µH with a tolerance of ±20%, measured at 100 kHz and 250 mV.
The rated current (ΔT=40K) is 5.8 A maximum. The performance rated current per IEC 62024-2-2020 is 7.4 A maximum.
The DC resistance is 18 mΩ typical and 23 mΩ maximum at 20°C.
The self-resonant frequency is 14.5 MHz typical.
The package is a nonstandard surface mount case with dimensions of 12.0 mm x 12.0 mm x 8.0 mm (max height).
Yes, it is AEC-Q200 qualified (Grade 1) and automotive released.
The operating temperature range is -40°C to +125°C.
