| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
519 pcs
|
519 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
519 pcs
|
519 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (for Rated Current) | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

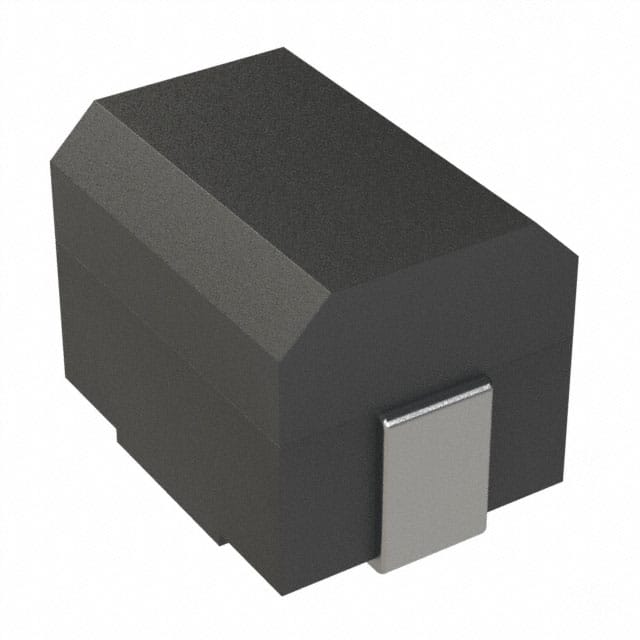

The Würth Elektronik 74476620 is a surface mount wirewound inductor from the WE-GF series. It features an inductance of 100 µH with ±10% tolerance, a maximum DC resistance of 8 Ω, and a rated current of 110 mA (based on a 20 K temperature rise). The self-resonant frequency is typically 8.5 MHz, and the minimum Q factor is 40 at 796 kHz. The inductor is unshielded with a ferrite core.
This component is designed for general electronic equipment and is suitable for applications such as power supply filtering, DC-DC converters, and signal conditioning. It operates over a temperature range of -40°C to +105°C, with the rated current specified up to +85°C ambient.
The inductor is housed in a 1812 (4532 Metric) package with dimensions of 4.5 mm x 3.2 mm x 3.6 mm. It is surface mountable and has a moisture sensitivity level of 1 (unlimited). The part is RoHS compliant and REACH conform.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.29 | $0.29 |
| 10+ | $0.27 | $0.27 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 µH at 0.796 MHz.
110 mA maximum (ΔT = 20 K).
8 Ω maximum at 20°C.
8.5 MHz typical.
1812 (4532 Metric) surface mount.
-40°C to +105°C.
No, it is unshielded.
