| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,230 pcs
|
1230 pcs | On Request | 1 | On Request | On Request | 2010 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 900 MHz) | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

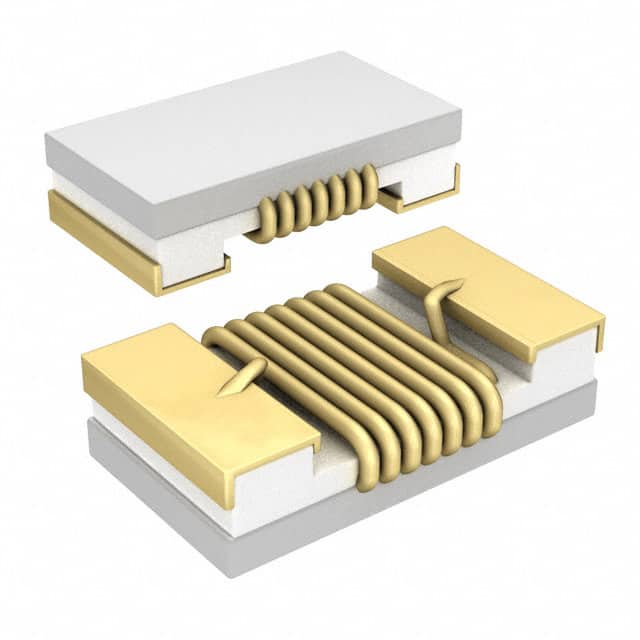

The Würth Elektronik 744765118A is a wirewound ceramic core fixed inductor from the WE-KI series, designed for surface mount applications. It offers an inductance of 18 nH with ±5% tolerance, measured at 250 MHz. The component is rated for a maximum current of 420 mA (ΔT = 15 K) and features a low DC resistance of 230 mOhm maximum at 20 °C.
This inductor achieves a minimum Q factor of 25 at 250 MHz and a typical Q factor of 52 at 900 MHz, with a self-resonant frequency of 3.1 GHz minimum. It is qualified to AEC-Q200 Grade 1, making it suitable for automotive and other high-reliability environments. The operating temperature range spans -40 °C to +125 °C.
The component is housed in a 0402 (1005 metric) package with dimensions 1.00 mm x 0.55 mm x 0.60 mm. It is RoHS3 compliant, REACH conform, halogen free, and has a Moisture Sensitivity Level (MSL) of 1. The recommended land pattern is provided in the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.42 | $0.42 |
| 50+ | $0.39 | $0.39 |
| 100+ | $0.36 | $0.36 |
| 500+ | $0.33 | $0.33 |
| 1,000+ | $0.30 | $0.30 |
| 3,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 18 nH with ±5% tolerance, measured at 250 MHz.
The rated current is 420 mA maximum, based on a temperature rise of 15 K.
The maximum DC resistance is 230 mOhm at 20 °C.
The minimum self-resonant frequency is 3.1 GHz.
It is in a 0402 (1005 metric) SMD package with dimensions 1.00 mm x 0.55 mm x 0.60 mm.
Yes, it is AEC-Q200 Grade 1 qualified.
The operating temperature range is -40 °C to +125 °C.
