| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

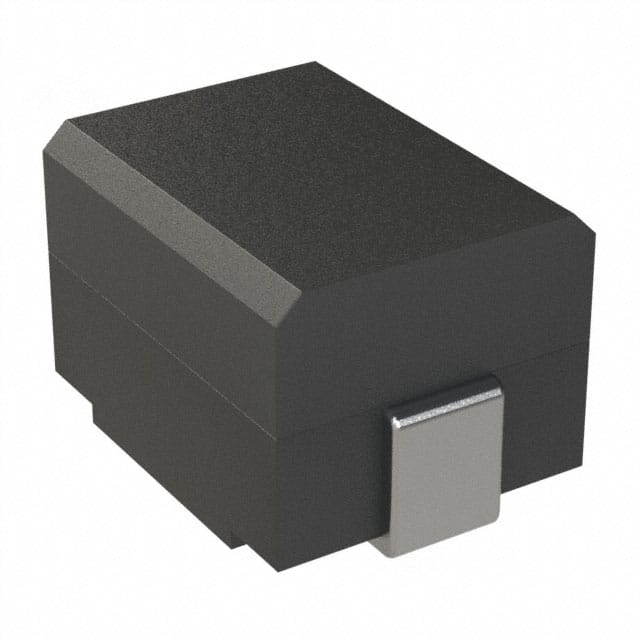

The Würth Elektronik 744764147 is a surface-mount wirewound fixed inductor belonging to the WE-GF series. It offers an inductance of 47 µH with ±10% tolerance, measured at 2.52 MHz.
This component is rated for a maximum current of 60 mA (based on a 20 K temperature rise) and features a maximum DC resistance of 7 Ω. Key electrical characteristics include a self-resonant frequency of 15 MHz typical and a minimum Q-factor of 30 at 2.52 MHz.
The inductor is housed in a 3225 (metric) package with dimensions 3.2 mm x 2.9 mm x 2.2 mm. It is designed for a maximum operating voltage of 120 V DC and can operate over an ambient temperature range of -40 °C to +85 °C, with a wider operating temperature range of -40 °C to +105 °C. The component is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
| 10+ | $0.17 | $0.17 |
| 100+ | $0.17 | $0.17 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH with a tolerance of ±10% measured at 2.52 MHz.
The rated current is 60 mA maximum, with a temperature rise of 20 K.
The maximum DC resistance is 7 Ω at 20 °C.
The typical self-resonant frequency is 15 MHz.
Yes, the component is RoHS compliant (2011/65/EU & 2015/863) and REACH conform or declared (EC 1907/2006).
