| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
718 pcs
|
718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

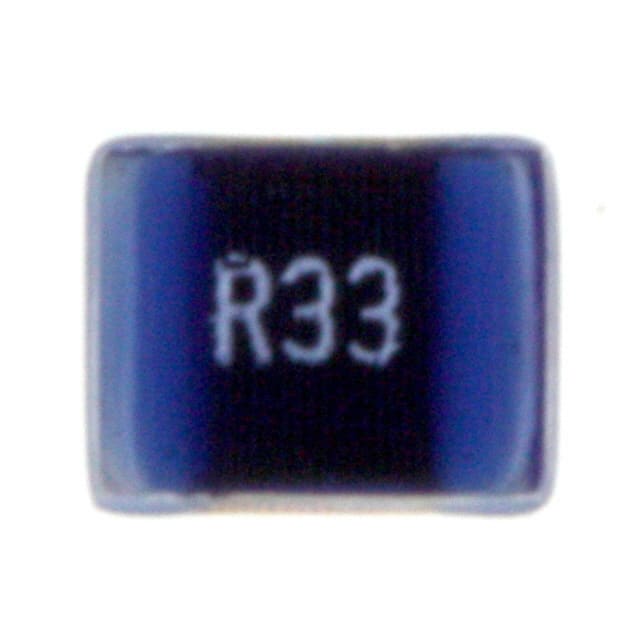

The Würth Elektronik 744762233A is a surface-mount wirewound ceramic core inductor from the WE-KI series. It offers an inductance of 330 nH with a tolerance of ±5% and a minimum Q factor of 45 at 100 MHz. The component is rated for a maximum DC resistance of 0.9 Ω and a maximum rated current of 500 mA (based on a 15 K temperature rise). Its self-resonant frequency is a minimum of 570 MHz.
This unshielded inductor is housed in a 1008 (2520 Metric) package and is qualified to AEC-Q200 Grade 1, making it suitable for automotive applications. It operates over a temperature range of -40°C to +125°C and is compliant with RoHS, REACH, and halogen-free standards. The moisture sensitivity level is MSL 1.
Designed for general electronic equipment, this inductor is particularly well-suited for RF circuits, impedance matching, and filtering applications where high Q and stable inductance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.45 | $0.45 |
| 50+ | $0.42 | $0.42 |
| 100+ | $0.39 | $0.39 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.33 | $0.33 |
| 2,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 330 nH with a tolerance of ±5%.
The maximum rated current is 500 mA, based on a temperature rise of 15 K.
The maximum DC resistance is 0.9 Ω.
The minimum self-resonant frequency is 570 MHz.
It is supplied in a 1008 (2520 Metric) surface-mount package.
Yes, it is AEC-Q200 Grade 1 qualified.
The operating temperature range is -40°C to +125°C.
