| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

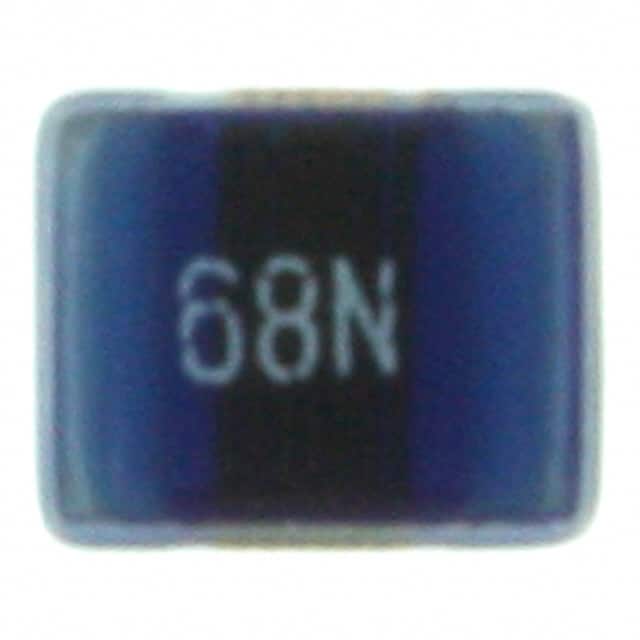

The Würth Elektronik 744762168A is a fixed inductor from the WE-KI series. It features an inductance of 68 nH with ±5% tolerance, a minimum Q factor of 60 at 350 MHz, and a self-resonant frequency of 1.3 GHz. The inductor is rated for a maximum DC current of 1 A with a DC resistance of 150 mOhm. It is designed for surface mount applications in a 1008 (2520 Metric) package. The component is unshielded with a wirewound ceramic core. It operates over a temperature range of -40°C to +125°C and is AEC-Q200 qualified for automotive applications. The inductor is RoHS, REACH, and halogen-free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.45 | $0.45 |
| 50+ | $0.42 | $0.42 |
| 100+ | $0.39 | $0.39 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.33 | $0.33 |
| 2,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
68 nH at 100 MHz.
1 A maximum at ΔT=15K.
150 mOhm maximum at 20°C.
1.3 GHz minimum.
1008 (2520 Metric) SMD.
-40°C to +125°C.
Yes, AEC-Q200 Grade 1.
