| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,604 pcs
|
2604 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,970 pcs
|
1970 pcs | On Request | 1970 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

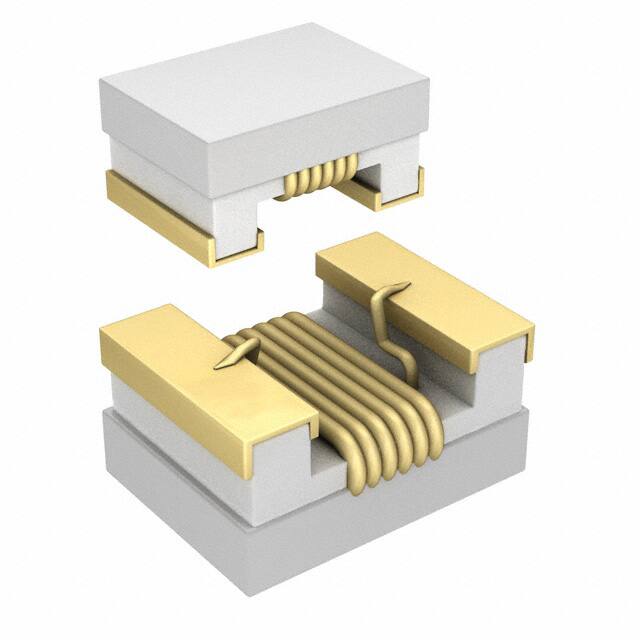

The 744761147C is a fixed inductor from Würth Elektronik, featuring a drum core wirewound construction with a ceramic core. It offers 47 nH inductance with ±5% tolerance, a maximum current rating of 600 mA, and a maximum DC resistance of 230 mOhm. The self-resonant frequency is 2 GHz, and the Q factor is 35 at 200 MHz, making it suitable for high-frequency applications.
This inductor is unshielded and designed for surface mount assembly. It comes in the 0603 (1608 Metric) package with dimensions of 1.65 mm x 1.15 mm x 1.10 mm. The operating temperature range is -40°C to 125°C, allowing use in a wide variety of environments.
Typical applications include RF circuits, impedance matching, and resonant tank circuits where high Q and stable inductance are required. The wirewound construction provides reliable performance in high-frequency signal processing and filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.38 | $0.38 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.33 | $0.33 |
| 500+ | $0.30 | $0.30 |
| 1,000+ | $0.28 | $0.28 |
| 3,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
47 nH.
600 mA maximum.
230 mOhm maximum.
2 GHz.
0603 (1608 Metric) SMD package.
±5%.
35 at 200 MHz.
