| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,798 pcs
|
1798 pcs | On Request | 1 | On Request | On Request | 2022+ | On Request | On Request | |
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Impedance (Typical @ 700 MHz) | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Rated Current (Maximum @ ΔT = 40 K) | |
| SVHC Present | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width | |
| impedance (Nominal @ 100 MHz) |

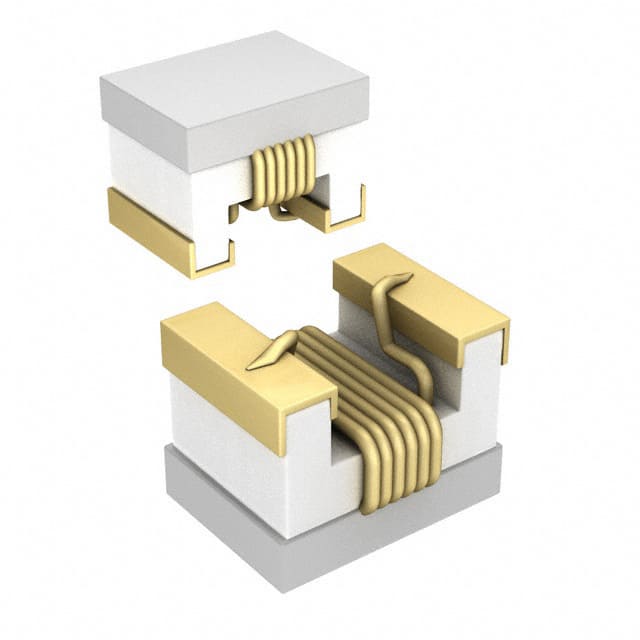

The 744760247A from Würth Elektronik is a WE-RFI series ferrite SMT inductor with a nominal inductance of 0.47 µH (±5%) measured at 25.2 MHz. It features a minimum Q-factor of 45 at 100 MHz and an impedance of 280 Ω (±25%) at 100 MHz, with a typical maximum impedance of 4725 Ω at 700 MHz. The component is rated for a maximum DC resistance of 0.5 Ω at 20 °C and has a self-resonant frequency of at least 375 MHz.
This unshielded drum core inductor is designed for surface-mount assembly in an 0805 (2012 metric) package with dimensions of 2.0 mm x 1.2 mm x 0.5 mm. It supports a maximum rated current of 500 mA at a temperature rise of 15 K, and 650 mA at a 40 K rise. The operating temperature range is -40 °C to +85 °C, with storage conditions below 40 °C and 75% relative humidity.
The inductor is RoHS3 compliant, REACH conform, halogen-free per JEDEC JS709B and IEC 61249-2-21, and qualified to AEC-Q200 Grade 3 for automotive applications. It is suitable for general electronic equipment and automotive-grade applications where its impedance characteristics and current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.33 | $0.33 |
| 50+ | $0.32 | $0.32 |
| 100+ | $0.30 | $0.30 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.27 | $0.27 |
| 2,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 0.47 µH with ±5% tolerance, measured at 25.2 MHz.
The rated current is 500 mA maximum at a temperature rise of 15 K, and 650 mA maximum at a 40 K rise.
The maximum DC resistance is 0.5 Ω at 20 °C.
The self-resonant frequency is 375 MHz minimum.
It comes in an 0805 (2012 metric) surface-mount package with dimensions of 2.0 mm x 1.2 mm x 0.5 mm.
Yes, it is AEC-Q200 Grade 3 qualified.
The operating temperature range is -40 °C to +85 °C.
