| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,930 pcs
|
1930 pcs | On Request | 1930 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

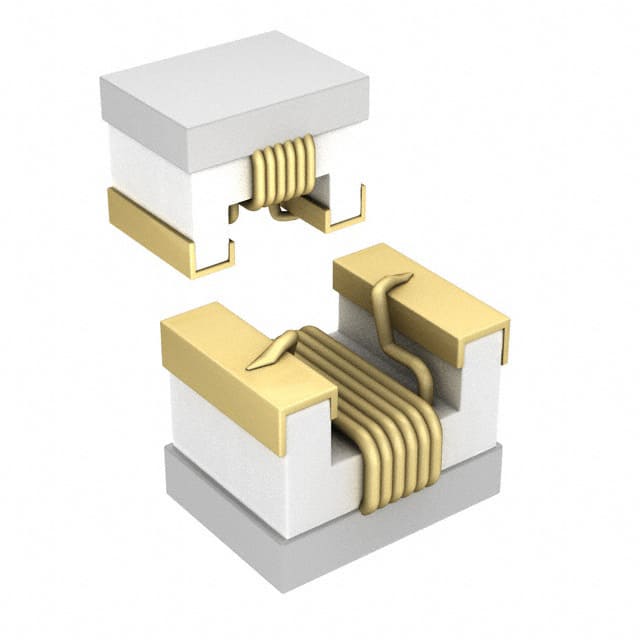

The 74476012C is a fixed inductor manufactured by Würth Elektronik. It features an inductance of 22 nH with a tolerance of ±5%. This component is rated for a current of 500 mA and has a maximum DC resistance (DCR) of 220 mOhm.
The inductor has a self-resonant frequency of 2.6 GHz and a Q factor of 55 at 500 MHz. It is constructed with a ceramic core and is unshielded. The component is designed for surface mount assembly and comes in a nonstandard package with a supplier device package size of 0805.
The operating temperature range is -40°C to 125°C. The physical dimensions are 2.29 mm in length, 1.70 mm in width, and 1.48 mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.38 | $0.38 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.33 | $0.33 |
| 500+ | $0.30 | $0.30 |
| 1,000+ | $0.28 | $0.28 |
| 2,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 nH with a tolerance of ±5%.
The current rating is 500 mA.
The maximum DC resistance is 220 mOhm.
The self-resonant frequency is 2.6 GHz.
The supplier device package is 0805.
The operating temperature range is -40°C to 125°C.
No, it is unshielded.
