| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q200 | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ @ 20 °C) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Package / Cae | |
| Rated Current (Maximum @ ΔT = 40 K) | |
| Saturation Current | |
| Self Resonant Frequency (Typical) | |
| Shielding | |
| Termination Style | |
| Tolerance | |
| Type |

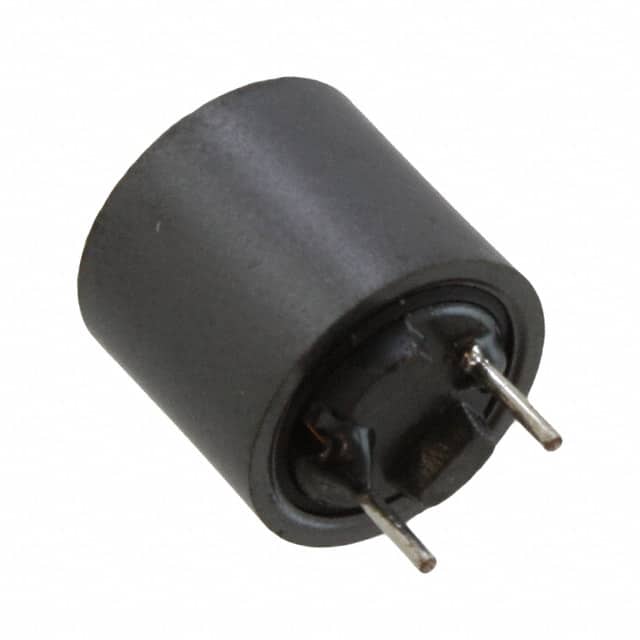

The 7447471068 is a shielded radial leaded wire wound inductor from Würth Elektronik's WE-TIS series. It features an inductance of 6.8µH with ±20% tolerance, rated current of 6A (ΔT=40K), and typical DC resistance of 16mΩ. The self-resonant frequency is 53 MHz typical. This inductor is AEC-Q200 Grade 1 qualified, making it suitable for automotive applications. It is RoHS, REACH, and Halogen Free compliant. The component is through-hole mounted with a radial lead style, measuring 11.0mm diameter and 11.5mm height. Operating temperature range is -40°C to +125°C. The shielded construction minimizes electromagnetic interference. Typical applications include power supply filtering, DC-DC converters, and automotive electronics where high current and low DCR are required.
6.8µH ±20% at 100kHz/5mA.
6A maximum at ΔT=40K.
16mΩ typical, 19mΩ maximum at 20°C.
53 MHz typical.
Radial, vertical cylinder, through-hole mounting.
Yes, Grade 1.
-40°C to +125°C.
